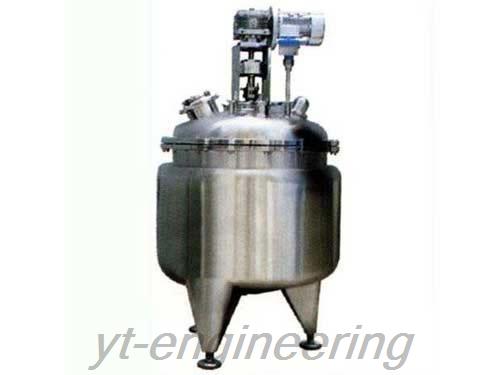

ZZG Seeding Tank
Introduction
ZZG seed tank is a kind of fully enclosed hygienic dedicated equipment that is applicable to biochemical fermentation production in brewing, pharmaceutical, food, health care products and condiment industries. This fermentation tank can be used to produce beer, monosodium, glutamate, citric acid, glycerin, enzyme preparation, and so on. This seed tank can heat, cool and preserve heat. It is generally classified into carbon steel seeding tank and stainless steel seeding tank.
Features
1. This fermentation tank is manufactured in accordance with GMP standard.
2. ZZG seed tank has no sanitary dead corner and its wholly-enclosed design ensures that materials are always mixed and fermented at non-pollution state.
3. It is equipped with air respirator, cleaning ball, sanitation inlet, viewing mirror and viewing lamp.
4. This fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products.
5. External surface of ZZG seed tank adopts sand grinding surface polishing treatment.
6. We specially design and install aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heating and cooling.
7. Heat preservation of this fermentation tank adopts polyurethane blister or pearl cotton.
8. The parts that contact materials are all made of stainless steel SUS304 or SUS316L.
Technical Parameters of ZZG Seed Tank
Nominal Volume (m3) | Diameter of Inner Tank Body (Dg) mm | Height of Inner Tank Body (H) mm | Diameter of Jacket (Dg) mm | Rotate Speed of Stirring Shaft (r. p. m) | Power of Stirring Shaft (kw) |
0.05 | 300 | 700 | 400 | 300-350 | 0.55 |
0.1 | 400 | 800 | 500 | 300-350 | 0.75-1.1 |
0.2 | 500 | 1000 | 600 | 280-340 | 0.75-1.5 |
0.3 | 550 | 1200 | 550 | 280-320 | 1.1-1.5 |
0.5 | 600 | 1650 | 700 | 200-280 | 1.5-2.2 |
0.8 | 800 | 1600 | 900 | 200-280 | 2.2-5.5 |
1.0 | 800 | 1900 | 900 | 200-280 | 2.2-5.5 |
1.2 | 900 | 1800 | 1000 | 200-280 | 3-7.5 |
1.5 | 900 | 2200 | 1000 | 200-280 | 3-7.5 |
2.0 | 1000 | 2500 | 1100 | 200-260 | 4-11 |
3.0 | 1200 | 2600 | 1300 | 200-260 | 5.5-11 |
4.0 | 1300 | 3000 | 1400 | 200-220 | 7.5-15 |
5.0 | 1400 | 3200 | ?1500 | 180-220 | 7.5-18.5 |
Note: There are different cooling and heating forms, such as jacket type, inner coil type and outside circulating tube type.
