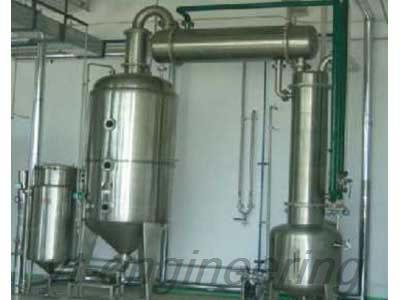

WZ-I Single Effect Circulation Evaporator

Description
WZ-I single effect circulation evaporator is composed of tubular external heater, vacuum evaporator and auxiliary devices. All the material contacting parts of this circulating evaporator is made of high quality stainless steels, which meets pharmaceutical and food hygiene requirements.

Application
Single effect circulation evaporator is suited to liquid material evaporating and concentration process in pharmaceutical, food, chemical and light industry.

Features
1.Single effect circulation evaporator consists of two demisters, which effectively cuts the material liquid loss.
2.The concentration capacity of this circulating evaporator is big with its maximal percentage up to 1.35.
3.This machine is simple structured and easy to clean.

Parameters of Single Effect Circulation Evaporator

Model	WZ-1350	WZ-1500	WZ-1700	WZ-11000	WZ-11500	WZ-12000
Evaporation Capacity (kg/h)	350	500	700	1000	1500	2000
Steam Pressure (MPa)	0.25	0.25	0.25	0.25	0.25	0.25
Heating Area (m2)	7	8	10.5	18	25	35
Condensation Area (m2)	13	16	20	30	50	70
Cooling Area (m2)	1.5	2	3	5	7	10
Vacuum Degree (MPa)	0.08	0.08	0.08	0.08	0.08	0.08

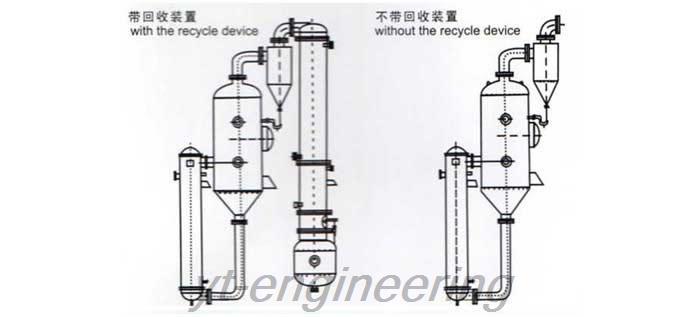

Process Flows of Single Effect Circulation Evaporator

The accessories suppliers and our company are in the same area, so the cost price of accessories has obvious advantage. Yutong deepens its management within the enterprise. We have detailed records for purchasing and using, so as to ensure full utilization rate of raw materials. Complete processing and manufacturing equipment can avoid additional costs due to outside processing of our circulating evaporator. In addition, Yutong has rich experience in design and manufacture, and a group of skilled workers with many years of production experience. All the single effect circulation evaporators have superior quality, so as to reduce the costs and losses from the rework.
