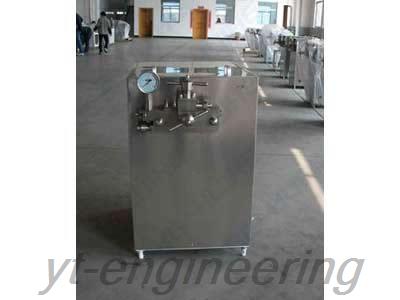

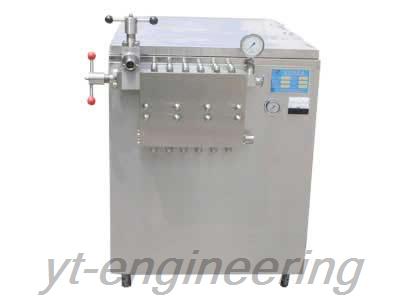

JZG Liquid Homogenizing Tank
Description
JZG liquid high pressure homogenizer is an exclusive machine for homogenizing and high-voltage transmitting liquid materials. It is used to modify the physical properties of liquid or mixture by creating emulsions (liquid in liquid suspension) or dispersions (solid in liquid suspension). High pressure viscolizers are also used to disrupt microbial cell suspensions.
Application
1. JZG liquid homogenizing tank is used as high pressure homogenizer.
Affected by extruding, strong impact and decompression inflation, materials are refined and mixed. This high pressure viscolizer is capable of homogenizing and emulsifying liquid materials with viscosity lower than 0.2Pa.s and temperature lower than 80℃. It is important processing equipment in food, dairy products, pharmaceutical, fine chemical and biotechnological industries. The commonly used materials include milk, soy milk, ice cream products, emulsion, jelly, juice and seriflux.
2. This high pressure homogenizer is used as high pressure pump.
This high pressure viscolizer is important equipment in powder production. Liquid material can produce high pressure through this equipment and will be made into powder through spray drying equipment. It can also be used for homogenizing, high pressure transporting and high pressure spraying any other liquid.
Working Principle of High Pressure Homogenizer
1.The homogenization process utilizes high pressure to force a mixture at high velocity through a narrow gap valve. Through the three plunger reciprocating pump of high pressure viscolizer, materials are sent to be processed to the homogenizing valve.
2.When the materials flow through the small gap between valve disk and valve carrier, they are affected by the composite force of turbulence, cavitation and shearing, resulting in homogeneity and emulsification of products.
Parameters of JZG High Pressure Homogenizer
Flow (L/h) | Max. Pressure (Mpa) | Power (kw) | ||||||
60 | 40 | 30 | 25 | 20 | 15 | 12 | ||
500 | 750 | 1000 | 11 | |||||
1000 | 1500 | 15 | ||||||
1000 | 1500 | 2000 | 22 | |||||
1500 | 2000 | 3000 | 30 | |||||
2000 | 3000 | 4000 | 5000 | 37 | ||||
2000 | 3000 | 4000 | 5000 | 6000 | 8000 | 10000 | 45 | |
3000 | 4500 | 6000 | 7000 | 9000 | 1000 | 55 | ||
4000 | 6000 | 8000 | 10000 | 75 | 4075 | 75 | ||
4000 | 6000 | 8000 | 10000 | 12000 | 15000 | 75 | ||
5000 | 7500 | 10000 | 12000 | 15000 | 18000 | 25000 | 90 | |
6000 | 9000 | 12000 | 14000 | 18000 | 24000 | 110 | ||
7000 | 10000 | 14000 | 16000 | 20000 | 26000 | 132 | ||
8000 | 12000 | 20000 | 20000 | 24000 | 30000 | 160 | ||
10000 | 15000 | 24000 | 24000 | 30000 | 40000 | 200 |
Notes:
1. Parameters above are standard configurations. We can also provide custom products.
2. As for making high pressure viscolizer, the required parameters include material properties, output, maximum pressure and other special requirements.
