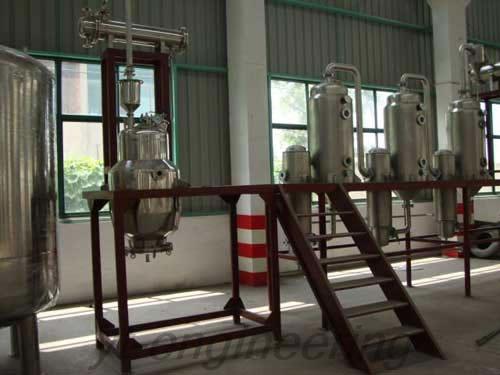

DT Static Multifunctional Extraction Tank
Description
Static multifunctional extractor adopts straight-type structure. It is easy for slagging. Slag-discharged door of static multifunctional extraction tank adopts air pressure on-off system. Equipped with self-lock device, it’s stable and reliable to operate.
Application
Static multifunctional extractor is mainly used for decoction, extraction, hot reflux extraction and circulation leaching of Chinese medicine with the mediums of water or organic solvents. Meanwhile, during extracting process, it can recycle volatile oil.
Features
1.Equipped with self-lock device, static multifunctional extractor is stable and reliable to operate, which effectively avoids operating mistakes by workers.
2.Static multifunctional extraction tank features high efficiency, energy saving and high drug concentration of extracting solution.
Parameters of Static Multifunctional Extractor
Model | DT-500 | DT-1000 | DT-2000 | DT-3000 | DT-6000 |
Equipment Volume (m3) | 0.5 | 1.0 | 2.0 | 3.0 | 6.0 |
Diameter of Main Body (mm) | 800 | 1000 | 1200 | 1400 | 1600 |
Diameter of Jacket (mm) | 900 | 1100 | 1300 | 1500 | 1700 |
Diameter of Feder (mm) | 300 | 300 | 400 | 400 | 500 |
Diameter of Slagging Door (mm) | 800 | 800 | 1000 | 1000 | 1000 |
Working Pressure of Inner Equipment (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Working Pressure of Inner Jacket (Mpa) | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
Height of Main Engine (mm) | 2000 | 3000 | 3600 | 4800 | 4800 |
Weight (kg) | 800 | 1100 | 1600 | 2000 | 2000 |
Condenser Area (m2) | 4.0 | 5.0 | 5.0 | 5.0 | 8.0 |
Cooler Area (m2) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Filter Specification | DN300×400 | DN300×400 | DN300×400 | DN300×400 | DN300×400 |
Mist Eliminator Specification | DN150 | DN150 | DN200 | DN200 | DN200 |
Oil-Water Separator Specification | DN200×800 | DN200×800 | DN300×1000 | DN300×1000 | DN300×1000 |
Lantoky implements strict quality control system to guarantee the performance static multifunctional extractor. The quality of static multifunctional extraction tank machine is repeatedly checked during each stage of production. The accessories suppliers and our company are in the same area, so the cost price of accessories has obvious advantage. We have detailed records for purchasing and using, so as to ensure full utilization rate of raw materials. Complete processing and manufacturing equipment can avoid additional costs due to outside processing of static multifunctional extractor.
