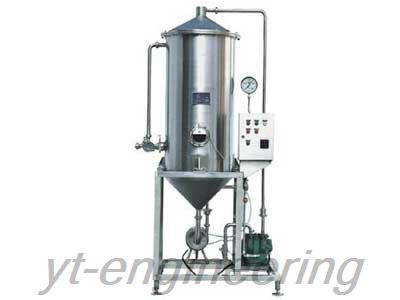

CDG Alcohol Precipitation Tank
Description
CDG alcohol precipitation tank is applicable to alcohol precipitation in Chinese medicine, oral liquid, food, health care products and chemical engineering industries. It is mainly used to freeze and precipitate the solution that is formed by concentrating Chinese medicine decoction liquid. Alcohol sedimentation tank is also used to finish water precipitation of concentrated solution after alcohol extraction of Chinese medicine. CDG alcohol precipitation tank is the key equipment in the alcohol precipitation working procedure.
Features

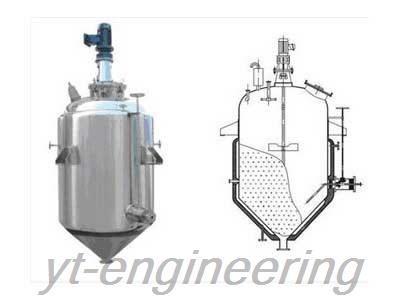

1. CDG alcohol sedimentation tank is composed of elliptical head, cone base, cylinder body, in-built paddle-type stirrer and special fine tuning back-out liquid pipe.
2. The jacket can cool materials indirectly through low temperature chilled water or frozen brine. This can improve the purity and clarity of extracting solution.
3. The transmission part of alcohol precipitation tank adopts mechanical seal and explosion-proof motor to ensure the production process conforms to the GMP medical standard.
4. The surface of alcohol sedimentation tank adopts mirror polishing processing or inferior smooth blasting treatment.
Specifications of CDG Alcohol Precipitation Tank
Model | JC-300 | JC-500 | JC-1000 | JC-1500 | JC-2000 | JC-3000 | JC-6000 |
Volume (m3) | 0.3 | 0.5 | 1 | 1.5 | 2 | 3 | 6 |
Heat Exchange Area (m2) | 1.8 | 3 | 4.5 | 5.4 | 6.2 | 8.1 | 12 |
Working Temperature (℃) | -100℃ (Normal Temperature) | ||||||
Working Pressure (Mpa) | 0.25 | ||||||
Stirring Power (kw) | 0.75 | 0.75 | 1.5 | 2.2 | 2.2 | 3 | 5 |
Inlet and Outlet Water Pipe | DN-20 | DN-20 | DN-20 | DN-25 | DN-25 | DN-40 | DN-40 |
Inside Diameter of Equipment (mm) | 600 | 800 | 1000 | 1200 | 1300 | 1400 | 1600 |
Inside Diameter of Jacket (mm) | 700 | 900 | 1100 | 1300 | 1400 | 1500 | 1700 |
Contour Diameter (mm) | 850 | 1050 | 1300 | 1550 | 1650 | 1750 | 2000 |
Over the years, Lantoky is devoted to development and production of alcohol sedimentation tanks. We emphasize scientific and technological innovation, and we cooperate with many famous colleges to develop new products. Our alcohol precipitation tanks are well received by more and more customers. Our company develops quickly and accumulates abundant capital and technology strength. We provide a variety of alcohol sedimentation tanks for customers to test and inspect.
