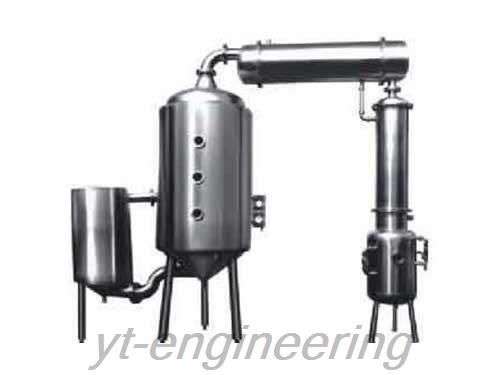

JN Multifunction Alcohol Recovery Concentrator

JN Multifunction Alcohol Recovery Concentrator

JN alcohol recovery concentrator is mainly used in traditional Chinese medicine, western medicine, glucose, oral solution, food, dairy product, starch, biological drugs and chemical industries. This alcohol recovery concentrate machine is suited to thermal sensitive vacuum concentration in low temperature and recycling organic solvent such as alcohol.

1.Alcohol recovery: Alcohol recovery concentrator features large recovery capacity. This alcohol recovery concentrate machine adopts vacuum operation method and have improves its process flow. The recovery rate is amount to 95%; the loss rate of alcohol is lower than 5% and the energy consumption is 30% reduced. Alcohol recovery concentrator is an energy saving machine with small investment and high recovery benefit.
2.Liquid concentration: Alcohol recovery concentrate machine adopts external heating in natural cycling mode with vacuum negative pressure evaporating mode. It is characteristic of instant evaporation and high concentrate proportion (up to 1.4). The liquid materials are concentrated under the completely sealed status without any foam. The liquid medicine concentrated from the alcohol recovery concentrator is pollution-free and has strong flavor of medicine. This alcohol recovery concentrate machine is easy to clean and operate, small in its floor space and elegant in appearance. Besides, the heater, evaporator and heat preservation are completely equipped before leaving the factory. The material contact parts are made of stainless steels. The exterior surface adopts grinding semi-luster polishing. It is accordance with GMP medicine standard.

Parameters of Alcohol Recovery Concentrator

Model JN-500 JN-1000 JN-1500
Evaporation Capacity (kg/h) 500 1000 1500
Recovered Alcohol (kg/h) 200 350 500
Recycling Concentration (%) 85
Working Pressure (Mpa) 0.03 to 0.09
Evaporating Temperature (℃) 40 to 85
Vacuum Degree (MpA) Above -0.092
Concentration Proportion (kg/cm3) 1.2 to 1.4
Weight of Equipment (kg) 1300 1850 2850
Overall Dimensions (L×W×H, mm) 2000 × 1000 × 3000 2200 × 1200 × 3300 2500 × 1300 × 3500

Yutong carries out ISO9001 quality management system in order to ensure the quality of alcohol recovery concentrate machines and granulating machines. Our products like alcohol recovery concentrators have been awarded with many honors, including the high quality recommendation certificate issued by U.S. Asia Economic Trade Cooperation Committee and East China excellent technological products certificate issued by Jiangsu Association for Science and Technology.
