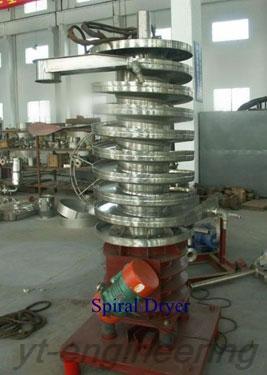

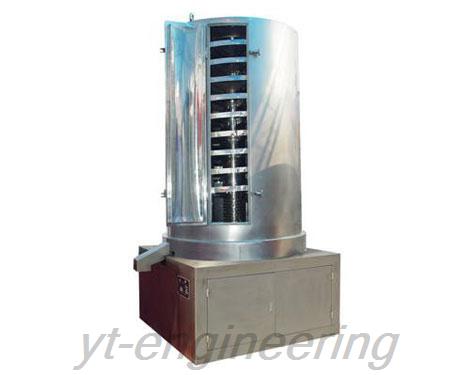

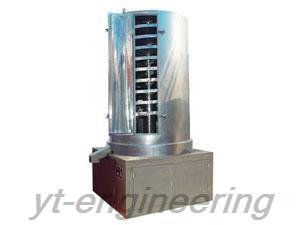

LZG Spiral Vibrating Dryer

Description

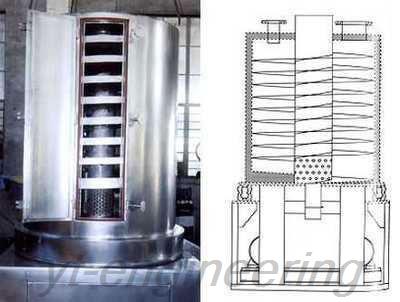

As a drying equipment manufacturer, we provide spiral vibrating dryer, continuous plate dryer and paddle dryer to meet different needs of customers. In order to better understand our LZG helix vibrating dryer, you should learn its working principle. The wet materials enter into the spiral vibrating dryer through a top charging opening, under the effect of circumferential excitation force and gravity, the materials jump from top to bottom along the spiral bed. Meanwhile, clean hot air enters from the bottom of the spiral bed and contact with materials for heat transfer and mass transfer. The hot air will expel from the wet discharging hole, so as to dry the wet materials.

Application
LZG spiral vibrating dryer is designed for drying traditional Chinese pills. Additionally, this helix vibrating dryer can be used for drying granular, strip type and spherical materials in the chemical, food, plastic, building materials as well as other industries.

Features
1.LZG spiral vibrating dryer owns compact structure and occupies small area.
2.The staying time of the materials can be adjustable.
3.This drying equipment is suitable for flow line production and meets GMP standards. It can replace traditional box-type dryer machine.
4.LZG helix vibrating dryer has no damage to surface and basic shape of the material, which can ensure pill roundness and greatly reduce breakage rate.

Parameters of Spiral Vibrating Dryer

Model	LZG-1.0	LZG-1.2	LZG-1.4	LZG-1.6	LZG-1.8
Diameter (mm)	1000	1200	1400	1600	1800
Vibrating Motor Power (kw)	2 × 0.8	2 × 0.8	2 × 1.5	2 × 1.5	2 × 2.2
Production Capacity (kg/h)	80 to 120	120 to 200	200 to 280	280 to 350	350 to 450
Inlet Air Temperature (℃ )	60 to 200	60 to 200	60 to 200	60 to 200	60 to 200
Air Flow (m3/h)	1487	2380	3721	4462	5930
Fan Power (kw)	4.1	7	7.7	14	24
Overall Dimensions (m)	1.2 × 1.2 × 2.7	1.4 × 1.4 × 2.7	1.6 × 1.6 × 2.3	1.8 × 1.8 × 3.3	2.0 × 2.0 × 3.3
Weight (kg)	1400	1680	2800	3100	3800

Yutong not only offers spiral vibrating dryer, but also spray dryer, vacuum dryer and drum dryer. Besides drying equipment, we have mixing machine, granulating machine and grinding machine for sale. Yutong is located in economically developed Yangtze River delta region, next to Shanghai shipping port and Shanghai airport, enabling us to save a large amount of transportation fees and time. If you want helix vibrating dryer, please feel free to contact us.
