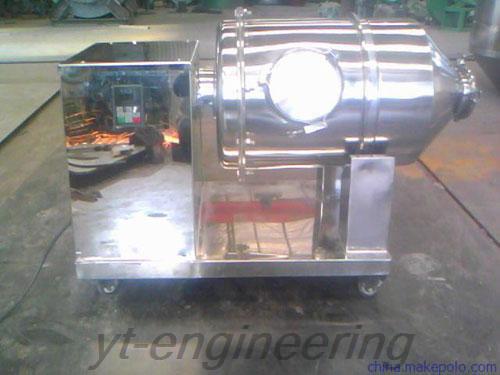

YYH Drum Powder Mixer Machine
Description
Drum powder mixer machine is a newly developed and high-efficient powder mixer. When it operates, the loading cylinder makes rotary movement around the center axis (simply called one-dimensional motion) while the barrel materials make three-dimensional movements.
Application
Drum powder mixer machine is widely used in pharmaceutical, chemical, food, dyes, fertilizer and pesticide industries for powder material and pellet material mixing. This drum powder mixing equipment is especially suited to mass production with barrel volume from 50L to 20000L.
Features
The structure of drum powder mixer machine is simple and compact. It is easy to operate and maintain. At the same time, it meets the GMP standard.

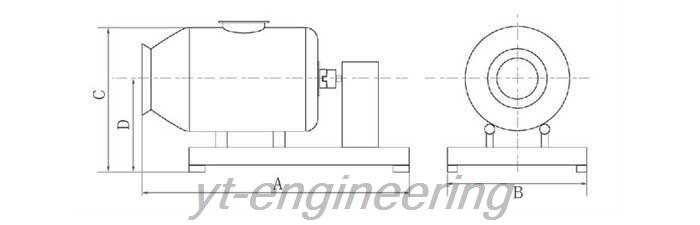

Overall Dimensions
Parameters
Model | Barrel volume (L) | Maximum loading capacity (L) | Maximum loading amount (Kg/batch) | Rotational speed (r/min) | Power of motor (Kw) | Overall dimensions A×B×C×D (mm) | Total weight (Kg) |
YYH-50 | 50 | 25 | 13 | 0-18 | 0.55 | 920×440×540×350 | 250 |
YYH-150 | 150 | 75 | 37 | 0-16 | 0.75 | 1140×610×900×445 | 320 |
YYH-300 | 300 | 150 | 75 | 0-14 | 1.1 | 1340×760×990×520 | 410 |
YYH-600 | 600 | 300 | 150 | 0-13 | 1.5 | 1615×960×1100×630 | 490 |
YYH-800 | 800 | 400 | 200 | 0-12 | 2.2 | 1730×1070×1200×700 | 560 |
YYH-1000 | 1000 | 500 | 250 | 0-12 | 2.2 | 1900×1120×1300×710 | 740 |
YYH-1500 | 1500 | 750 | 375 | 0-12 | 3 | 2050×1300×1480×830 | 850 |
YYH-2000 | 2000 | 1000 | 500 | 0-10 | 4 | 2280×1420×1620×910 | 1050 |
YYH-3000 | 3000 | 1500 | 750 | 0-10 | 5.5 | 2505×1620×1830×1020 | 1380 |
YYH-4000 | 4000 | 2000 | 1000 | 0-8 | 5.5 | 3000×1800×2200×1300 | 1650 |
YYH-6000 | 6000 | 3000 | 1500 | 0-6 | 7.5 | 3400×2200×2500×1450 | 2300 |
YYH-8000 | 8000 | 4000 | 2000 | 0-6 | 11 | 3677×2300×2850×1630 | 3500 |
YYH-10000 | 10000 | 5000 | 2500 | 0-6 | 11 | 3800×2500×2950×1680 | 3800 |
YYH-12000 | 12000 | 6000 | 3000 | 0-6 | 15 | 4600×2700×3050×1700 | 4500 |
YYH-15000 | 15000 | 7500 | 3750 | 0-5 | 18.5 | 4730×2900×3100×1725 | 6000 |
YYH-20000 | 20000 | 10000 | 5000 | 0-5 | 22 | 6000×3200×3500×1920 | 8000 |
Founded in August, 2000, Lantoky Drying Engineering is a professional drum powder mixing equipment manufacturer and granulating machine supplier in China. We implement strict quality control system to guarantee the performance of drum powder mixer machine. The quality of mixer machine is repeatedly checked during each stage of production. Additionally, drum powder mixing equipment as well as other machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave our factory.
