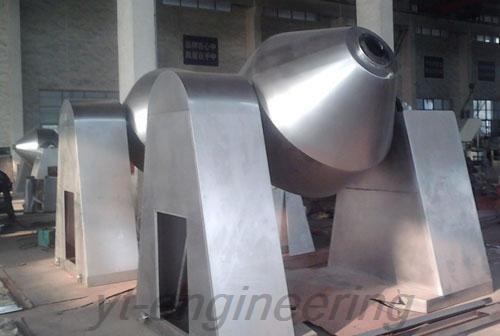

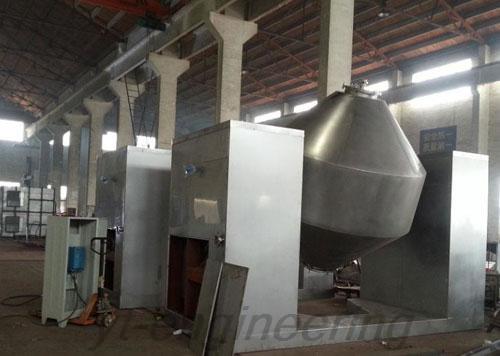

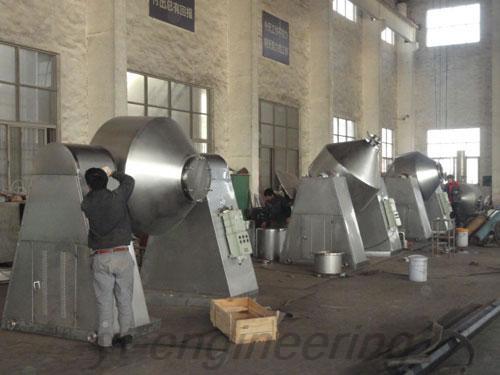

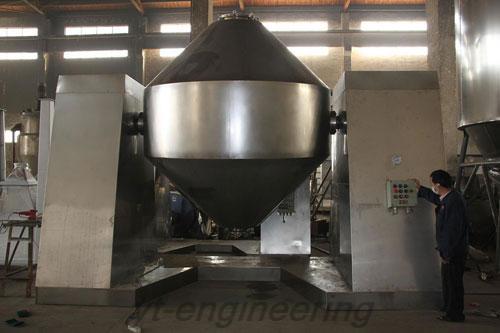

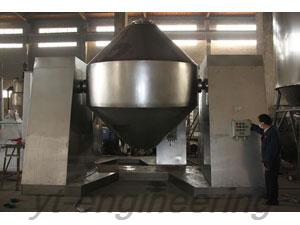

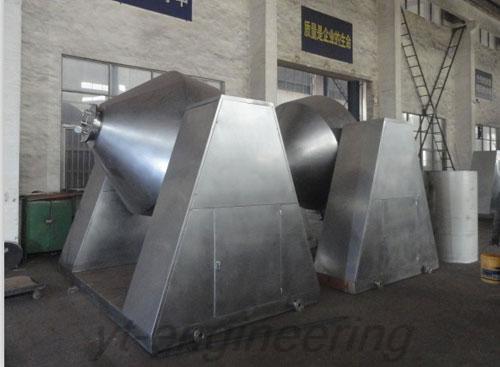

Description
SZG double cone vacuum dryer is a new type drying equipment which combines similar product technologies at both home and abroad. This rotary vacuum dryer possesses belt and chain two-stage elastic connection modes. With low center of gravity, this drying machine can operate smoothly. Heating medium and vacuum system adopt reliable mechanical seal or rotating joint, so as to avoid defects such as the regular packing seal is easy to leak. On this basis, we modify this double cone vacuum dryer. It not only embodies the humanized design concept but also meets the GMP standards.
Application
SZG double cone rotary vacuum dryer is applicable for drying and mixing powdery and granular materials in the pharmaceutical, food, chemical, dye and other industries. It is especially suitable for the following materials:
1.Thermosensitive materials that cannot withstand high temperature
2.Easily oxidized and dangerous materials
3.Materials whose solvent should be recovered and materials of poisonous gas
4.Materials required low residual volatile content
5.Materials with requirements on crystal shape
Features of SZG Double Cone Vacuum Dryer
1.This rotary vacuum dryer has advanced design, simple internal structure, convenient to clean and easy to handle.
2.The tubes of heating medium and vacuum system are built in the rack in order to prevent artificial damage and difficult clean.
3.The outer wall and rack sealing plate adopt polishing treatment, and the inner container adopts mirror polishing treatment.
4.The materials in the double cone vacuum dryer can be rotated due to the revolution of the machine, which can minimize material water content (≤0.5%).
5.The materials will not stick to the wall of the container. With big drying rate and energy saving, this rotary vacuum dryer can uniformly and sufficiently dry the materials.
6.Condenser and recycling tank are equipped for recovering organic solvent.
7.Our double cone vacuum dryer has three types of heat source, including steam, hot water and conduction oil.

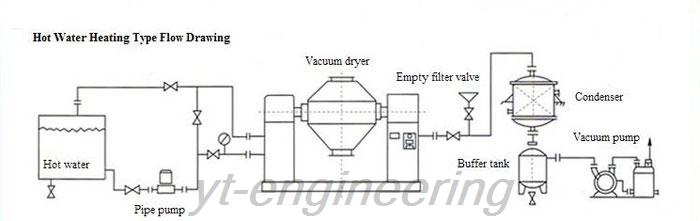

Process Flow Diagram of Rotary Vacuum Dryer
Technical Parameters of SZG Rotary Vacuum Dryer
| Model | 100 | 350 | 500 | 750 | 1000 | 1500 | 2000 | 3500 | 4500 | 5000 |
| Volume (L) | 100 | 350 | 500 | 750 | 1000 | 15000 | 2000 | 3500 | 4500 | 5000 |
| Maximum Loading Volume (L) | 40 | 140 | 200 | 300 | 400 | 600 | 800 | 1400 | 1800 | 2000 |
| Maximum Loading Capacity (kg) | 20 | 70 | 100 | 150 | 200 | 300 | 400 | 700 | 900 | 1000 |
| Rotating Speed (rpm) | 3~13 | 6 | 5 | 4 | 4 | 4 | ||||
| Motor Power (k w) | 0.75 | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Floor Area (mm) | 2160 × 800 | 2160 × 800 | 2350× 800 | 2560 × 1000 | 2860 × 1300 | 3060 × 1300 | 3260 × 1400 | 3760 × 1800 | 3960 × 2000 | 4400 × 2500 |
| Rotation Height (mm) | 1750 | 2100 | 2250 | 2490 | 2800 | 2940 | 2990 | 3490 | 4100 | 4200 |
| Design Pressure In Container (MPa) | -0.09 to 0.096 | |||||||||
| Interlayer Design Pressure (MPa) | ≤ 0.3 | |||||||||
| Weight (kg) | 800 | 1100 | 1200 | 1500 | 2800 | 3300 | 3600 | 6400 | 7500 | 8600 |
Over the years, we make our effort to the development and production of granulating machine, double cone vacuum dryer, grinding machine and blending machine. We implement strict quality control system to guarantee the performance rotary vacuum dryer. The quality of drying machine is repeatedly checked during each stage of production. Only the qualified products are allowed to leave the factory. If you have any question about double cone vacuum dryers, please feel free to contact us. Customers are welcomed to visit the company.
