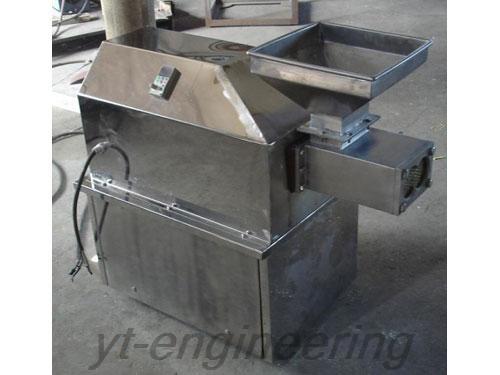

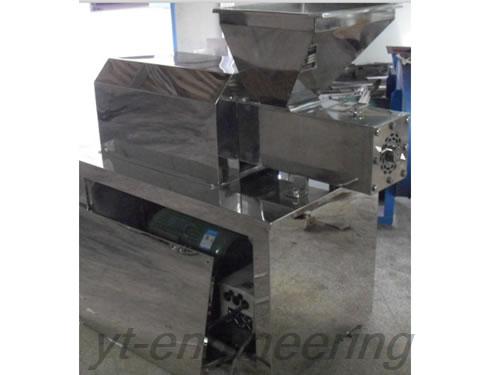

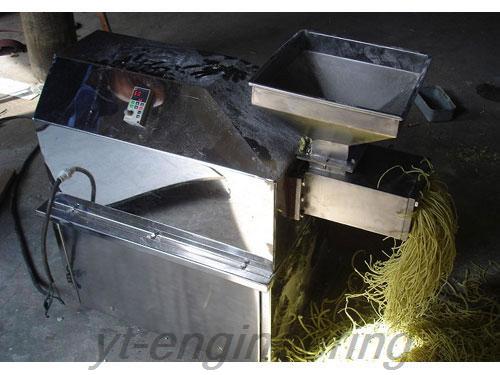

JZL Twin Screw Pellet Mill Machine

JZL Twin Screw Pellet Mill Machine

Features
The pellets produced by twin-screw extrusion granulator are extruded rigidly through screw and plate. Therefore the finished products are compact, uniform in size, non-hygroscopic and have long shelf life. Pellet mill machine is particularly applied to granulating in traditional Chinese medicine and food industry. The machine is surface finish, easy to operate and convenient for assembling, disassembling and wash.

Application
Twin-screw extrusion granulator is broadly used in pharmaceutical, health product, food, condimental, chemical, agricultural product processing industry and other industries.



Parameters of Twin-Screw Extrusion Granulator

Model JZL60 JZL130
Center Distance of Two Screws (mm) 60 130
Production Capacity of Wet Material (kg) 20 to 50 20 to 350
Size of Finished Particles (mm) ¢0.5 to ¢3 ¢0.5 to ¢3
Speed of Extrusion Shaft (r/min) 15 to16 infinitely variable 35, 47, 60
Power of Motor (kw) 1.5 5.5
Weight (kg) 300 500
External Dimension (L × W × H) (mm) 890 × 650 × 1460 900 × 660 × 1530

Founded in August, 2000, Lantoky Drying Engineering is a professional drying machine manufacturer and pellet mill machine supplier in China. Our products are widely used in pharmaceutical, food, chemical, light industry, agriculture, fishery, dyes, pigment and plastic rubber industry. If you have any question about twin-screw extrusion granulator, please feel free to contact us. In addition, overseas enterprises or individuals are welcomed to be agents of our products.
