ZX Line Vibration Screen
Description

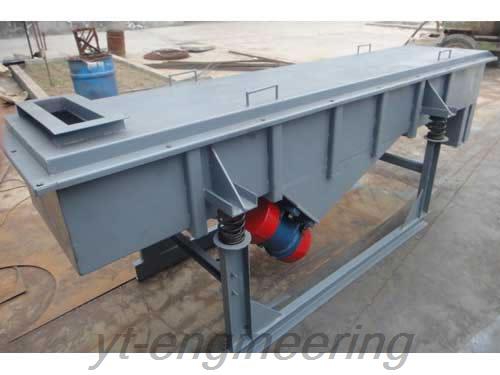

Line vibrating screen is mainly composed of sieve box, sieve frame, sieve mesh, vibration motor, motor pedestal, damper spring and support. ZX linear vibrating sieve can be used in assembly line to realize automated operation. It is features with low energy consumption, high efficiency, simple structure, easy repair, full enclosed structure, no dust, and so on.
Application of ZX Line Vibration Screen
Linear vibrating sieve is mainly used to classify and separate powder and materials with medium and small granularity, such as food, pharmaceutical, chemical engineering, grain, fertilizer, ceramics, coal, fireproof material and building materials. It is typically applicable for sieving kinds of cohesionless dry type powder or granule materials that has less than 7% water content and granularity of 0.074 mm to 5 mm.
Parameters of ZX Line Vibration Screen
Model | ZX-520 | ZX-525 | ZX-530 | ZX-1020 | ZX-1025 | ZX-1030 |
Nominal Dimension (mm) | 500 × 2000 | 500 × 2500 | 500 × 3000 | 1000 × 2000 | 1000 × 2500 | 1000 × 3000 |
Material Granularity (mm) | 0.74 × 10 | 0.74 × 10 | 0.74 × 10 | 0.74 × 10 | 0.74 × 10 | 0.74 × 10 |
Vibration Frequency (time/m) | 960 | 960 | 960 | 960 | 960 | 960 |
Sifting-Bed Inclination | 0°-7° | 0°-7° | 0°-7° | 0°-7° | 0°-7° | 0°-7° |
Amplitude | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 | 3-4.5 |
Layer Number | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
Power (kw) | 2 ×(0.4-0.75) | 2 ×(0.4-0.75) | 2 ×(0.4-0.75) | 2 ×(0.4-0.75) | 2 ×(0.4-0.75) | 2 ×(0.4-0.75 |
Lantoky Drying Engineering is a high-tech enterprise engaged in manufacturing linear vibrating sieves in China. We have obtained the ISO9001 international quality system certificate. Located in Jiaoxi town, a famous town of south of the Yangtze River, our company enjoys transportation advantage. Our line vibrating screens have been exported to America, Europe, the Middle East, West Africa, Southeast Asia and other regions and countries.
