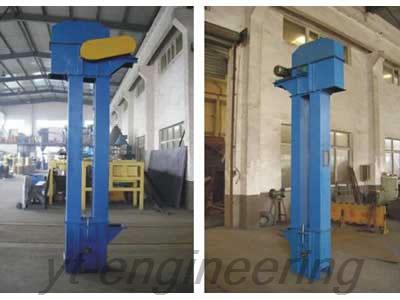

DTJ Bucket Elevator
Introduction
TD bucket elevator is applicable for vertically conveying powdery, granular and small blocky bulk materials with small grinding suction, such as grain, coal, cement, broken ore, etc. The maximum elevating height of this bucket hoister is 40 m. There are four kinds of buckets for TD type bucket elevator: Q type (shallow bucket), H type (arc bottom bucket), ZD type (medium and deep bucket) and SD type (deep bucket).
Structure
TD bucket hoister is composed of operation part (hopper and traction tape), upper section with transmission drum, lower section with tension drum, middle enclosure, drive unit and non-return braking device. This bucket elevator is suitable for conveying non-grinding and semi-grinding bulk materials that are powdery, granular or small blocky (The bulk densityρis less than 1.5 t/m3.
Parameters of TD Bucket Hoister
Model | TD160 | TD250 | TD315 | TD400 | ||||||||||||
Bucket Type | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | SD | Q | H | ZD | Sd |
Conveying Capacity (m3/h) | 5.4 | 9.6 | 9.6 | 16 | 12 | 22 | 23 | 35 | 17 | 30 | 25 | 40 | 24 | 46 | 41 | 66 |
Bucket Width (mm) | 160 | 250 | 315 | 400 | ||||||||||||
Bucket Volume (L) | 0.5 | 0.9 | 4.2 | 1.9 | 1.3 | 2.2 | 3.0 | 4.6 | 2 | 3.6 | 3.8 | 5.8 | 3.1 | 5.6 | 5.9 | 9.4 |
Pitch of Buckets (mm) | 280 | 350 | 360 | 450 | 400 | 500 | 480 | 560 | ||||||||
Belt Width (mm) | 200 | 300 | 400 | 500 | ||||||||||||
Bucket Speed (m/s) | 1.4 | 1.6 | 1.6 | 1.8 | ||||||||||||
Big Block Material (mm) | 25 | 35 | 45 | 55 | ||||||||||||
Model | TD500 | TD630 | TD160 | TD250 | TD350 | TD450 | ||||||||||
Bucket Type | Q | H | ZD | SD | H | ZD | SD | Q | S | Q | S | Q | S | Q | S | |
Conveying Capacity (m3/h) | 38 | 70 | 58 | 92 | 85 | 89 | 142 | 4.7 | 8 | 18 | 22 | 25 | 42 | 50 | 72 | |
Bucket Width (mm) | 500 | 630 | 160 | 250 | 350 | 450 | ||||||||||
Bucket Volume (L) | 4.8 | 9 | 9.3 | 15 | 14 | 14.6 | 23.5 | 0.65 | 1.1 | 2.6 | 3.2 | 7 | 7.8 | 14.5 | 15 | |
Pitch of Buckets (mm) | 500 | 625 | 710 | 300 | 400 | 500 | 640 | |||||||||
Belt Width (mm) | 600 | 700 | 200 | 300 | 400 | 500 | ||||||||||
Bucket Speed (m/s) | 1.8 | 2 | 1 | 1.25 | 1.25 | 1.25 | ||||||||||
Big Block Material (mm) | 60 | 70 | 25 | 35 | 45 | 55 |
Lantoky Drying Engineering is a professional manufacturer and supplier of bucket elevators in China. We possess 10 professional engineers and technical personnel and over 100 sets of processing equipment. Over the years, we make efforts to the development and production of bucket hoisters. For more information about our TD bucket elevators, please feel free to contact us.
