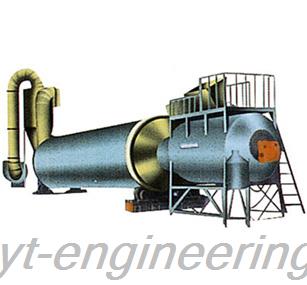

HGB Plant Rotary Barrel Dryer
Description

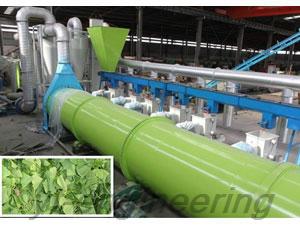

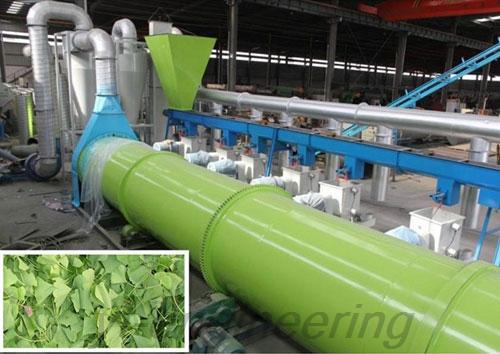

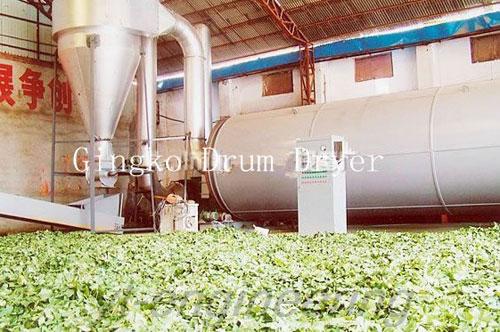

HGB cylinder dryer is specially designed for dehydrating and drying seasonal plants with high moisture content, such as pasture, fresh Chinese herbal medicine and gingko. This rotary drum drying machine uses hot air furnace as heat source, having big drying amount and easy operation.

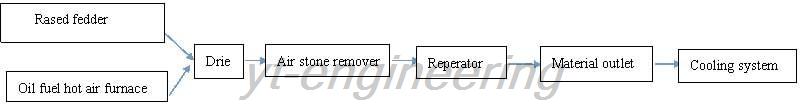

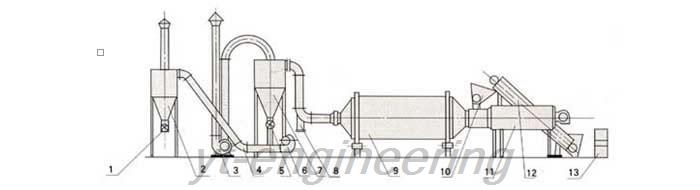

Drying Process of HGB Cylinder Dryer
1.Wind closer
2.Cyclone separator
3.Draught fan
4.Cooling wind pipe
5.Wind closer
6.Fan
7.Cyclone separator
8.Air stone remover
9.Rocking drier
10.Feeder
11.Oil fuel hot air furnace
12.Raising feeder
13.Control table
Parameters of HGB Cylinder Dryer
Item/Model | HGB-500 | HGB-1500 | |
Water Evaporation Capacity (kg/h) | 360 | 1100 | |
Productivity (kg/h) | 500 | 1500 | |
Inlet Air Temperature (℃≤) | ≤ 900 | ≤ 900 | |
Rotating Speed (r.p.m) | 0 to 11 | 0 to 11 | |
Oil Consumption (kg/h) | ≤ 60 | ≤ 135 | |
Total Power (kw) | 34.4 | 50.39 | |
Overall Dimension | Length (m) | 11 | 12 |
Width (m) | 2 | 2.8 | |
Height (m) | 3.0 | 3.2 | |
Weight (T) | 20 | 32 |
As a professional cylinder dryer manufacturer and supplier in China, Lantoky offers kinds of drum dryers, such as rotary drum drying machine and drum scraper drying machine. We implement strict quality control system to guarantee the performance our drying equipment. The quality of cylinder dryer is repeatedly checked during each stage of production. Additionally, rotary drum drying machine must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
