QG Pulse Air Stream Dryer

Description
QG air stream drying machine enables to change the running speed of the materials and improve the drying efficiency by adding the pulse tubes, so that the materials can stay a relatively longer time in the dyer and can be fully dried.

Application
QG pulse air stream dryer is suitable for drying loose and small viscosity materials in the pharmaceutical, chemical and food industry. Typically, this air stream drying machine can dry materials such as methaqualone, ABC intermediates, ABS resin, A.S.C, white carbon black, oxalic acid catalyst, catalytic agent, powdered carbon, titanium dioxide, activated carbon, sodium fluosilicate, silica powder, synthetic resin, calcium phosphate, polypropylene resin, chlortetracycline, sodium metasilicate, sodium sulfate, sulfide ore, phosphate rock powder, tetracycline, ferric oxide, calcium carbonate, iron oxide, and so on.

Features of Pulse Air Stream Dryer
1.Heat source can choose steam heating, fire coal, fuel oil or hot blast stove.
2.QG air stream drying machine possesses high drying strength and strong evaporation capacity (50kgH2O/h to 1500kgH2O/h).
3.This drying equipment is used for drying thermosensitive materials due to its short drying time. The finished products do not contact with the outside world, no pollution and good quality.

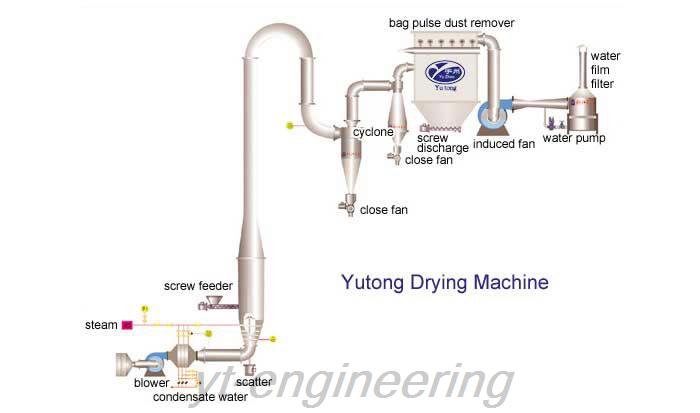

Flow Chart of QG Pulse Air Stream Dryer

Parameters of QG Air Stream Drying Machine

Model	Evaporation of Water (kg/h)	Installed Powder (kw)	Floor Space (m2)	Height (m)
QG50	50	7	17	8
QG100	100	13	28	10
QG200	200	21	36	10
QG250	250	24	55	12
QG500	500	43	80	12
QG1000	1000	100	110	14
QG1500	1500	150	130	15

Lantoky specializes in designing and manufacturing air stream drying machine. Over the years, we make our effort to the development and production of drying machine, granulating machine, grinding machine and mixing machine. With the advantages of easy operation, stable performance and reasonable prices, pulse air stream dryers are popular in America, Britain, Germany, Malaysia, India, Vietnam, Thailand, Bangladesh, Singapore, Nigeria and Mexico. If you want air stream drying machines, please feel free to contact us.
