WFJ Micro Grinder
Description

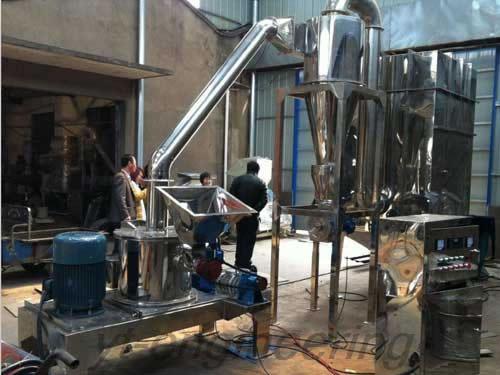

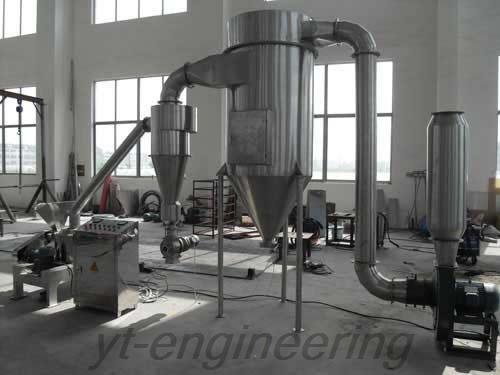

WFJ micro grinding machine is made up of main engine, auxiliary machine and electric control. The material is fed into the crushing chamber through a hopper, and is cut and sheared by the high speed cutters. Then the material is moved into the whirlwind separator and sack dust catcher by the negative pressure sucking method. The dust is collected and recycled via cloth bag or filter of dust absorption box. There is no dust flying during the production process of micro grinding machine so as to improve the utilization of materials.
Application
WFJ micro grinding machine is widely used in pharmaceutical, chemical and food industries. It can be applied to chemical, food, medical, cosmetic, dyestuff and shell materials. Due to the negative pressure sends heat out continuously in operation, the machine is also applied for the grinding of heat sensitive materials.
Features
1.Micro pulverizer machine features compact design and reasonable structure with wind option.
2.Micro grinding machine is equipped with rating devices which makes a complete crushing and classification.
Parameters
Model | Production Capacity (kg/h) | Feeding Size (mm) | Discharging Size (mesh) | Total Power (kw) | Main Speed (r/min) | Overall Dimensions (m) | Weight (kg) |
WFJ-15 | 10 to 200 | ≤ 10 | 60 to 450 | 13.5 | 5800 | 4.2 × 1.2 × 2.7 | 1000 |
WFJ-18 | 25 to 600 | ≤ 10 | 60 to 450 | 19.3 | 5200 | 4.5 × 1.2 × 2.7 | 1500 |
WFJ-36 | 30 to 800 | ≤ 10 | 60 to 450 | 39.5 | 3800 | 6.4 × 1.5 × 3.8 | 2500 |
WFJ-60 | 50 to 1200 | ≤ 10 | 60 to 450 | 75.3 | 3200 | 7.5 × 2.3 × 4.2 | 3200 |
WFJ-80 | 100 to 1500 | ≤ 15 | 60 to 450 | 90.75 | 2800 | 7.5 × 2.5 × 4.2 | 4000 |
WFJ-100 | 150 to 2000 | ≤ 15 | 60 to 450 | 125 | 2400 | 8.5 × 2.7 × 4.2 | 5000 |
Note: Due to the differences in materials, output will be different.
Founded in August, 2000, Lantoky Drying Engineering is a professional micro grinding machine manufacturer and granulating machine supplier in China. Our products are widely used in pharmaceutical, food, chemical, light industry, agriculture, fishery, dyes, pigment and plastic rubber industry. If you have any question about micro pulverizer machines, please feel free to contact us. Customers are welcomed to visit the company. In addition, Lantoky also welcomes overseas enterprises or individual to be agents of our products.
