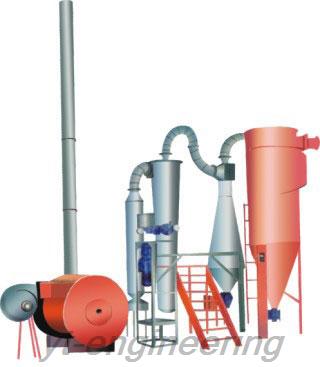

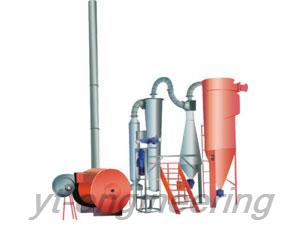

FG Exhaust Cycling Airstream Dryer
Description
FG airstream drying machine is newly developed with exhaust gas circulation function. It is divided into two steps to complete wet materials drying. Compared with other air stream drying equipments, this dryer can save 20% to 48% energy.
Application
FG airstream drying machine is used for drying non-viscous and loose materials, including starch, glucose, fish meal, sugar, draff, feed, gluten, plastic resin, coal dust and dye. Our air stream drying equipment can be extensively applied to dry powdery and granular materials in food, chemical, pharmaceutical, building materials and other industries.
Features
Compared with other air steam dryers, this airstream drying machine can save 30% energy due to its tail gas recycling. Therefore, this FG air stream drying equipment is characterized by high efficiency, fast speed, energy conservation and small space occupation.
Parameters
Model | Evaporation of Water (kg/h) | Installed Powder (kw) | Floor Space (m2) | Heat Efficiency (%) |
FG0.25 | 113 | 11 | 3.5 × 3.5 | >70 |
FG0.5 | 225 | 18.5 | 7 × 5 | >70 |
FG0.9 | 450 | 30 | 7 × 6.5 | >70 |
FG1.5 | 675 | 55 | 8 × 7 | >70 |
FG2.0 | 900 | 75 | 11 × 7 | >70 |
FG2.5 | 1125 | 90 | 12 × 8 | >70 |
FG3.0 | 1250 | 110 | 14 × 10 | >70 |
FG3.5 | 1500 | 110 | 14 × 10 | >70 |
Lantoky is a professional air stream drying equipment manufacturer and supplier in China. We mainly provide QG pulse air stream dryer, FG airstream drying machine and enhanced air stream dryer. Besides drying machine, we have mixing machine, granulating machine, coating machine, grinding machine, extractor and concentrator equipment for sale. Lantoky consistently commits to provide users with satisfied solutions, high quality products, perfect after-sale service, so as to acquire the satisfaction of each customer.
