YPG Pressure Spray Dryer Machine

Description
YPG pressure spray dryers utilize spray nozzle to atomize the materials to tiny liquid drops, which drop in parallel with the hot air at the top of the tower to finish drying, and transform the materials into powdery or granular products. This pressure spray drying machine is very suitable for drying thermosensitive materials.

Application
YPG pressure spray dryer is broadly used in food, pharmaceutical, chemical, dye, ceramics, biological, pesticide, plastics and other industries. The following are some specific applications:

Spray Drying Granulation
Chemical industry: organic catalyst, resin, synthetic detergent, oil, thiamine, dye intermediate, white carbon black, graphite and ammonium phosphate.
Food: amino acid, spices, protein, starch, dairy products, coffee extracts, fish meal and so on
Pharmaceuticals: Chinese patent medicine, pesticide, antibiotic and dissolved medicines
Ceramics: magnesium oxide, porcelain clay, all kinds of metal oxide, dolomite, etc.
Spray Granulation
Fertilizers, alumina, ceramic powder, heavy metal, granulous detergent and Chinese patent drug
Spray Cooling Granulation
Aliphatic acid, paraffin, olein and oil
In addition, our spray drying machine can also be used in the fields of spray crystallization, spray concentration and spray reaction.

Features of Pressure Spray Dryer
1.The characteristics of this spray drying machine include fast drying speed, high dust collection rate and energy conservation.
2.The dried products are in the shape of spherical particles, with uniform particle size, good fluidity and solubility, high purity and superior quality.
3.With wide range of applications, this pressure spray dryer can not only implement hot air drying and granulation, but also conduct cooling granulation, spray crystallization and spray reaction.
4.This spray drying machine is easy to operate and maintain. It is also easy to realize automatic operation.

Parameters

Model	YPG-25	YPG-50		YPG-100		YPG-150	YPG-200		YPG-300		YPGI-500	YPGI-1000
Evaporated Amount of Moisture (kg/h)	25	50		100		150	200		300		500	1000
Pump Pressure (mpa)	The pressure is generally between 1 and 3 mpa if the materials are under 0.65 to 5 mpa.
Power (kw)	0.35		4		7.5	11	15	22		30		55
Inlet Air Temperature (℃)	150 to 350
Diameter of Tower Body (mm)	1300		1600		2000	2400	2800		3200		3800	4600
Height of Tower (mm)	7800		8900		11500	13500	14800		15400		18800	22500

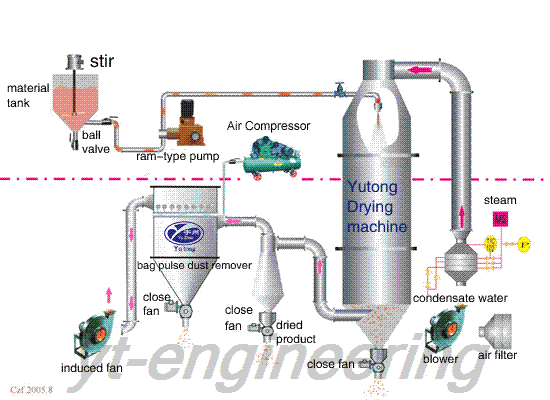

Flow Chart of Pressure Spray Dryer Machine

As a professional spray drying machine manufacturer and supplier in China, we have obtained the ISO9001 international quality system certificate. In addition to pressure spray dryer, we supply vacuum drying machine, centrifugal spray dryer, belt dryer, flash drying machine, drum dryer and other drying equipment to meet the needs of customers. Lantoky consistently commits to provide users with satisfied solutions, high quality products, perfect after-sale service, so as to acquire the satisfaction of each customer.
