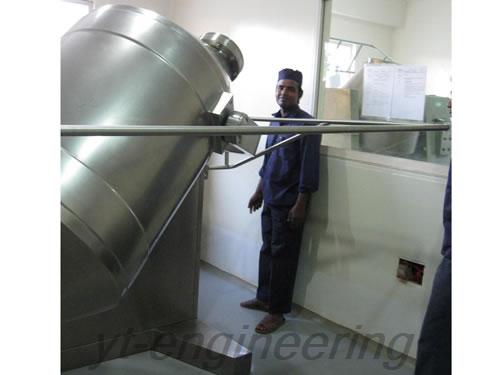

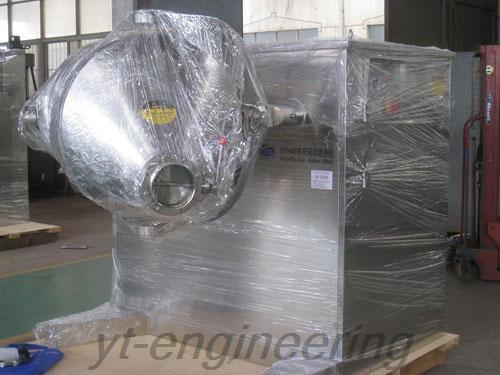

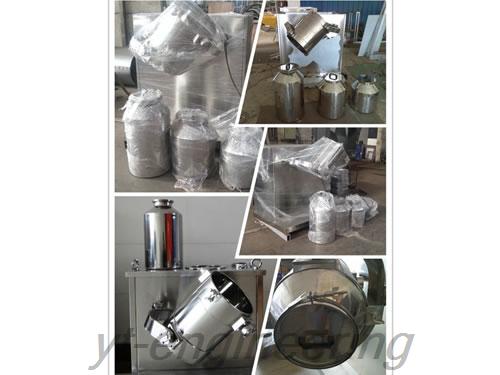

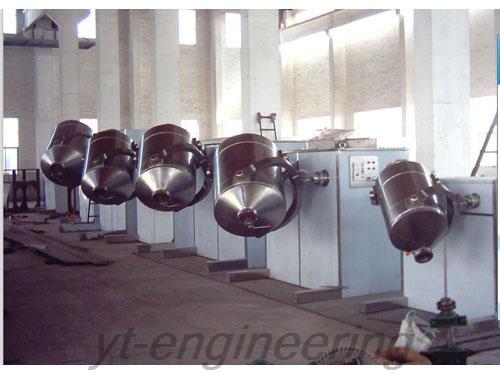

日本SYH Three Dimensional Pharmaceutical Blender
Description
Effective blending and mixing is now an essential part in pharmaceutical industries. SYH three dimensional pharmaceutical blender can effectively ensure the quality of mixing materials. When it operates, with the mixing cylinder operating with multi-directional movement, various materials in the mixing process accelerated their mobility and diffusion. At the same time, it avoids the gravity segregation and accumulation phenomena caused by centrifugal force.
Application
SYH three dimensional pharmaceutical blender is widely used in pharmaceutical, chemical, food, metallurgy, light industries and research institutes.
Features
1.Pharmaceutical mixer has a unique driven shaft servo mechanism, so that the whole machine runs stably and reliably with low noise.
2.Three dimensional pharmaceutical blender is characteristic of short mixing time and good mixing effect with the evenness up to 99.9%.
3.The inner wall of the barrel of pharmaceutical mixer is finely polished, so there is no dead angle in it.
4.Both inside and outside of the cylinder is polished, which totally meets the GMP standard.
Parameters
| Model | SYH-5 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 |
| Volume of mixing drum (L) | 5 | 100 | 200 | 400 | 600 | 800 | 1000 |
| Max loading volume (L) | 4.25 | 85 | 170 | 340 | 510 | 680 | 850 |
| Max loading weight (k) | 5 | 80 | 150 | 200 | 300 | 400 | 500 |
| Revolution speed of main shaft (r／min) | 24 | 15 | 12 | 10 | 10 | lO | 10 |
| Power of motor (kw) | 0.37 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Overall dimensions | 600× 1000× 1000 |
i200× 1800× 1500 |
1300× 1600× 1500 |
1500× 2200× 1500 |
1850× 2500× 1650 |
1900× 2400× 2100 |
1950× 2500× 2400 |
| Weight (kg) | 150 | 500 | 750 | 1200 | 1500 | 1650 | 1800 |
Lantoky possess 10 professional engineering and technical personnel and over 100 sets of processing equipment. Over the years, we make our effort to the development and production of three dimensional pharmaceutical blender. With rapid development, we have already accumulated abundant capital and technology strength. Various experimental pharmaceutical mixers are available for customers to test and inspect.

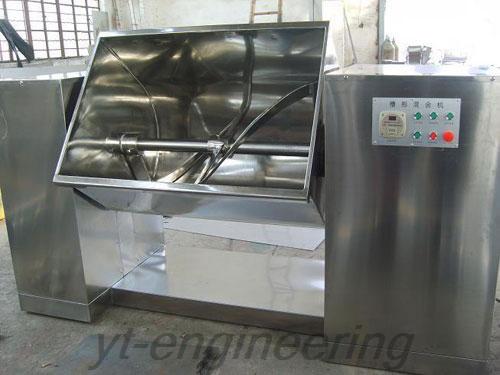

- CH Trough Food Mixer Machine
- Trough food mixer machine is equipped with a set of stirring paddle of horizontal type, so it is suitable for mixing different proportion of dry or wet powdery ...

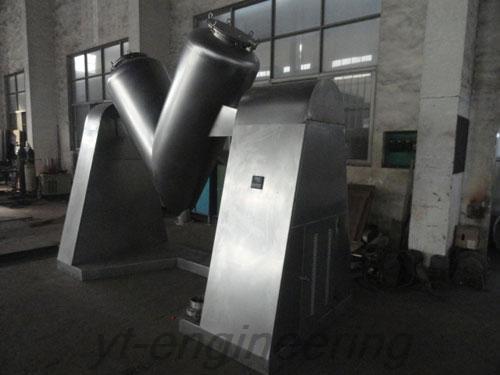

- V Type Mixer Machine
