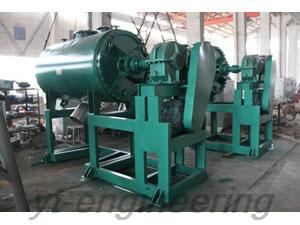

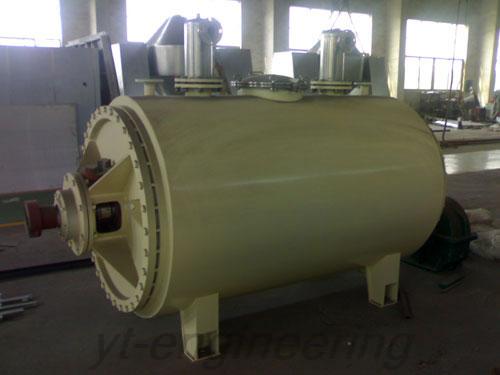

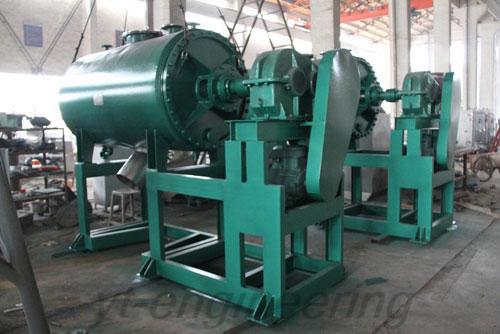

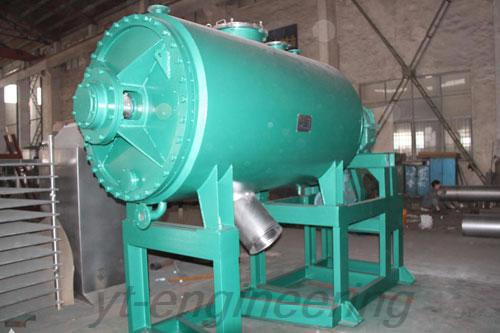

ZKG Vacuum Harrow Dryer
Description
ZKG vacuum harrow dryer is new type high-efficiency horizontal vacuum drying equipment. It adopts jacketed structure, and the jacket can be heated by steam, hot water or conduction oil. The jacket transfers the heat to the inner wall of the shell via conduction or radiation. The dried materials are added into the dryer through an opening in the middle of the machine shell. Constant stirring of the revolving harrow causes the materials move back and forth. The surface contacting with the inner wall of the shell constantly updates, resulting in high drying rate and uniform finished products.
Application
ZKG vacuum harrow dryer is designed for drying slurry, pasty, powdery materials, thermosensitive materials requiring low-temperature drying, easily oxidized materials, as well as explosive materials, toxic materials and the materials whose organic solvents should be recovered. This vacuum drying equipment is applied to the pharmaceutical, nourishment, food, chemical and other industries.
Features
1.ZKG vacuum harrow dryer uses large-area interlayer heating, which can obtain large heat-transfer surface and high heat efficiency.
2.This vacuum drying equipment with a stirring device can improve the heating uniformity and smoothly dry slurry and pasty materials.
3.It is easy to operate and clean, which can effectively reduce labor intensity.
4.If this vacuum harrow dryer adopts internal concurrent heating, the heating area will be greatly increased.
Parameters
Model | Volume (L) | Working Volume (L) | Heating Area (m2) | Stirring Rate (rmp) | Power (kw) | Interlayer Pressure (Mpa) | Pressure in the Container (Mpa) |
ZKG-500 | 500 | 300 | 3.2 | 8 to 18 | 4 | 0.3 | -0.096 to 0.15 |
ZKG-750 | 750 | 450 | 4.4 | 8 to 18 | 5.5 | 0.3 | -0.096 to 0.15 |
ZKG-1000 | 1000 | 600 | 5.1 | 8 to 18 | 5.5 | 0.3 | -0.096 to 0.15 |
ZKG-1500 | 1500 | 900 | 6.3 | 8 to 18 | 7.5 | 0.3 | -0.096 to 0.15 |
ZKG-2000 | 2000 | 1200 | 8.1 | 8 to 18 | 7.5 | 0.3 | -0.096 to 0.15 |
ZKG-3000 | 3000 | 1800 | 10.6 | 8 to 18 | 11 | 0.3 | -0.096 to 0.15 |
ZKG-4000 | 4000 | 2400 | 12.3 | 8 to 18 | 15 | 0.3 | -0.096 to 0.15 |
ZKG-5000 | 5000 | 300 | 14.2 | 8 to 18 | 18.5 | 0.3 | -0.096 to 0.15 |
ZKG-6000 | 6000 | 3600 | 16.5 | 8 to 18 | 22 | 0.3 | -0.096 to 0.15 |
We are a specialized vacuum drying equipment manufacturer and supplier in China. Besides, vacuum harrow dryer, Lantoky also provides spray dryer, belt dryer, mixing machine, granulating machine, grinding machine as well as other machines. With rapid development, we have already accumulated abundant capital and technology strength. Lantoky has various experimental drying machines for customers to test and inspect. If you want vacuum harrow dryers, please feel free to contact us.
