日本DSH Double Screw Blender
Description

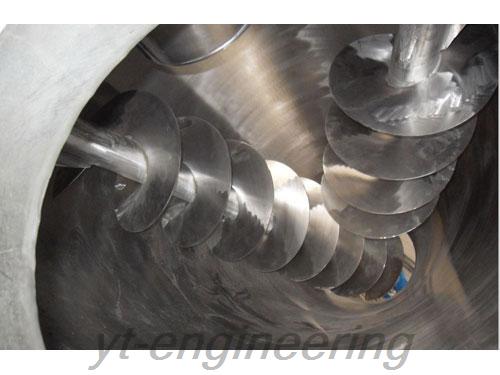

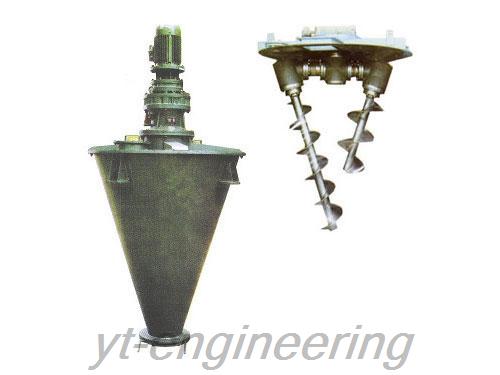

DSH double screw mixer integrates powder, granule and liquid mixing. The rotation of twin screw mixer is completed by a set of motors and cycloid reducers. With asymmetric mixing by two screws, the stirring range will be expanded and stirring speed will accelerate.
Application
DSH double screw mixer is suitable for powder and powder, powder and liquid as well as liquid and liquid mixing. It is widely used in chemical, fertilizer, pesticides, dyes, breeding, food, pharmaceutical, health food, bioengineering and nuclear materials industries. This twin screw mixer has a good adaptability to coarse, fine and ultrafine powder, fibers or flakes mixing.
Features
1.Twin screw blender is greatly adapted to mixed materials.
2.This machine has no over-hearting phenomenon to sensitive materials.
3.Double screw mixer will not grind particulate materials.
4.This twin screw mixer will not produce segregation phenomenon when it comes to poor proportion materials.
Parameters of Double Screw Mixer
| Model | DSH0.3 | DSH0.5 | DSH1 | DSH2 | DSH4 | DSH6 | DSH10 |
| Overall Volume (m3) | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| Loading Factor | 0.4 to 0.6 | ||||||
| Particle Size of Mixing Machine (μm) | 40 to 3000 | ||||||
| Working Conditions | Under normal temperature and normal pressure, dust seal | ||||||
| Production Capacity of Each Time | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| Power of Mixing Machine (KW) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| Mixing Time (min) | 4 to 10 (Special materials determined by experiment.) | ||||||
| Total Weight (kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
Lantoky specializes in designing and manufacturing double screw mixers. Over the years, we make our effort to the development and production of drying machine, granulating machine, grinding machine and mixing machine. With the advantages of easy operation, stable performance and reasonable prices, twin screw blenders are popular in America, Britain, Germany, Malaysia, India, Vietnam and Thailand. If you want double screw mixers, please feel free to contact us.
