DMH Double Door Sterilization Oven

DMH Double Door Sterilization Oven

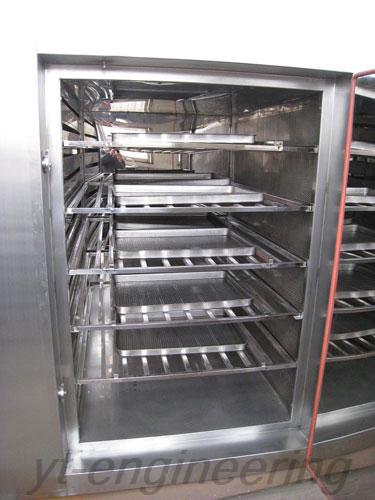

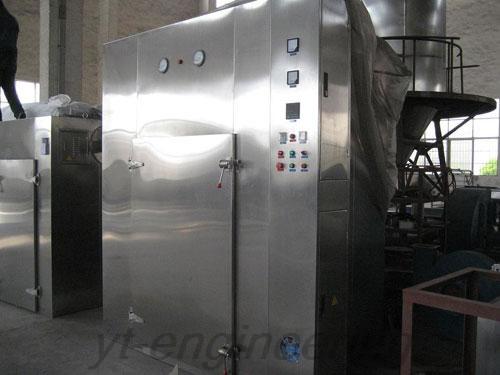

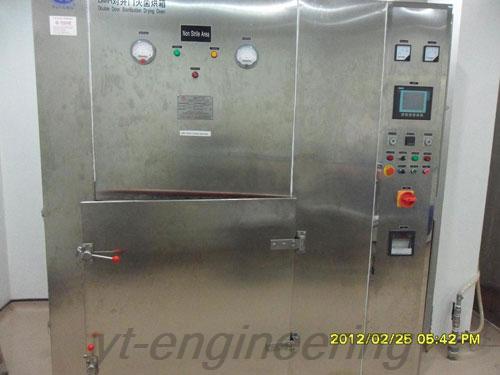

DMH double door sterilization oven is equipped with high-efficiency centrifugal fan for main circulation, air door fan and air inlet fan for assisted circulation. There is a high temperature and high efficiency air filter mounted on the air inlet, air outlet and the inner side of this drying oven. Under the action of the main and auxiliary circulating wind, the double door sterilization oven will rapidly obtain high purity hot air. It is one of the essential drying sterilization equipment for pharmaceutical production.

DMH double door sterilization oven, under the action of the centrifugal fan, makes the hot air enter into the drying oven through filter from one side, and returns from the other side. After 20 to 30 minutes self-circulation, the cleanliness can reach 100 grades. This drying equipment is mainly used for sterilizing the antibiotics bottles and infusion bottles with 50 to 100ml. Additionally this double door sterilization oven can be used for the sterilization of barrel appliances made from raw materials.

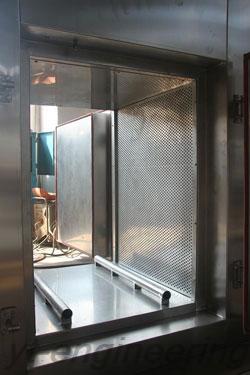

1. This drying oven adopts double-door structure, and it can pass through two different levels of cleaning workshop.
2. Adjustable air flow promotes uniform temperature in the oven, the temperature difference may retain ≤±2℃.
3. The inner tank adopts arc welding, which is easy to clean and sterilize.
4. DMH double door sterilization oven uses intelligent control with high precision and easy operation.
5. Fan shaft adopts mechanical seal in order to prevent the lubricating grease from penetrating to the drying oven.
6. This drying equipment is equipped with recorder and printer for printing relevant operational data according to the needs.
7. DMH double door sterilization oven sets and stores the working temperature, wet removal temperature and time, constant temperature time and downtime. After starting this machine, the PLC system will automatically work according to the setting procedures until the work is completed. Then drying oven will automatically stop.
8. Various sterilization ovens can be customized according to the customer needs.

Technical Parameters of Double Door Sterilization Oven

Model DMH-1 DMH-2 DMH-3 DMH-4
Heating Power (kw) 6 9 12 18
Temperature Range (℃) Room temperature reaches to 300
Blower Power (kw) 0.55 0.75 1.1 1.5
Dimension Of Working Chamber (L × W × H) (mm) 600 × 500 × 750 800 × 800 × 1000 1000 × 1000 × 1200 1000 × 1200 × 1500
Outline Dimension (L × W × H ) (mm) 840 × 1110 × 1250 1040 × 1220 × 1800 1240 × 1620 × 2000 1440 × 1620 × 2300

As a professional drying oven manufacturer and supplier, Yutong offers CT-C hot air circulation tray dryer, DMH double door sterilization oven and SG tunnel hot air oven. We also have spray dryer, belt dryer, vacuum drying machine, mixing machine, granulating machine, coating machine and so on for sale. Yutong will provide one-year warranty for dyring equipment, during which we can offer free maintenance due to equipment damage caused by the device itself quality.
