EYH Two Dimensional Tumble Mixer
Description

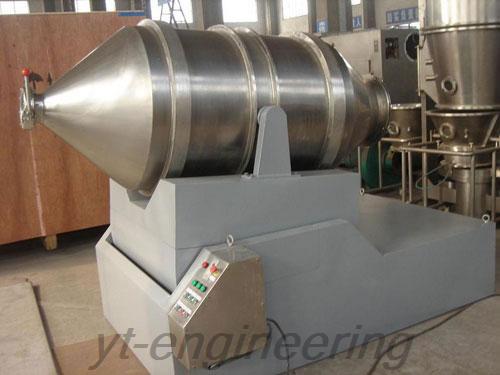

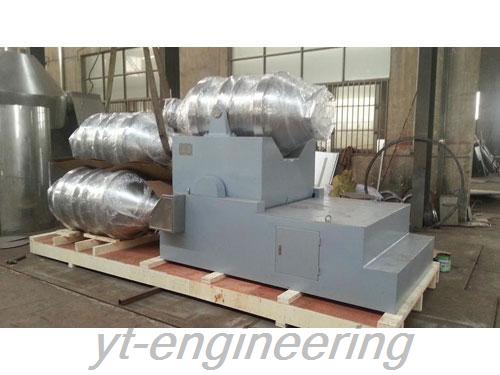

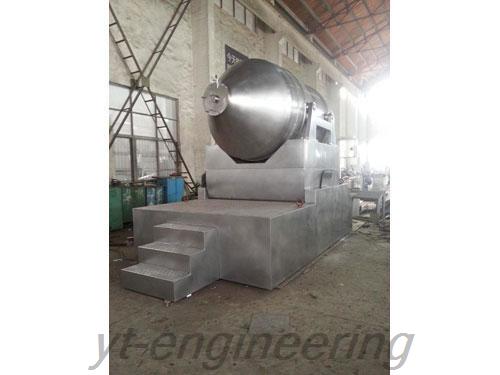

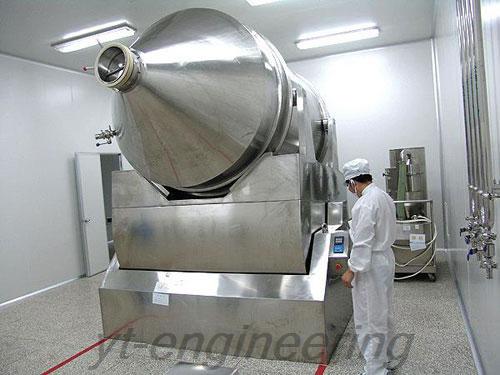

EYH two-dimensional motion mixer is a high efficiency and energy saving mixer. It is mainly made up of drum, swing rack and frame. Supported by four wheels, the drum is installed in the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, this two-dimensional motion mixer is suitable for mixing of all powder and granule materials.
Application
The two-dimensional motion mixer is widely used in pharmaceutical, food, dye, feed, chemical fertilizer and pesticide industries and especially suitable for mixing various solid materials with large volume (1,000L to 12,000L).
Features
1.This two-dimensional mixing machine is sterile, dust-free and totally enclosed.
2.Two-dimensional motion mixer features quick mixing and discharging, as well as high volume mixing capacity.
Parameters
Model | Barrel volume | Loading capacity | Maximum loading capacity | Number of rotation | Total motor power | Overall dimension | Gross weight | Barrel weight |
EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310×400×450×395 | 15 | 4 |
EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540×580×900×700 | 60 | 8.5 |
EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700×730×1100×990 | 115 | 15 |
EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800×1050×1450×1340 | 190 | 50 |
EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900×1350×1550×1400 | 340 | 60 |
EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170×1640×2050×1910 | 1150 | 140 |
EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320×1950×2150×2000 | 1600 | 200 |
EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360×2040×2300×2170 | 1700 | 240 |
EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580×2400×2550×2330 | 2000 | 320 |
EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740×2600×2770×2550 | 2600 | 430 |
EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800×2900×2950×2800 | 3500 | 620 |
EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970×3300×3300×2950 | 4100 | 700 |
EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300×2900×3800×3100 | 6100 | 1100 |
EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540×4100×4050×3650 | 7900 | 1450 |
EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900×4500×4400×4020 | 9500 | 1650 |
Lantoky has long-term cooperation with domestic universities and colleges. In addition, we hire experienced professors and engineers, two of them have more than twenty years’ experiences. Two-dimensional motion mixer has strong development and innovation capacities. Lantoky has rich experience in design and manufacture, and a group of skilled workers with many years of production experience. All the two-dimensional mixing machines have superior quality, so as to reduce the costs and losses from the rework.
