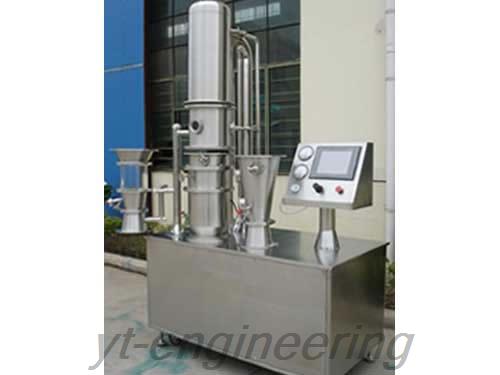

DLP Multifunction Granulator Coater
Description
DLP multifunction granulation coating machine is kind of multifunctional equipment that integrates spray drying, granulation, centrifugal pellets and fluidized coating drying. This granulator coater is compatible with a variety of process operations.
Application
Multifunction granulation coating machine is especially suited to pharmaceutical, food and chemical industry for multi-species, multi-dose granulating, pelleting and coating.
Features
1.Multifunction granulation coating machine integrates granulating, pelleting and coating.

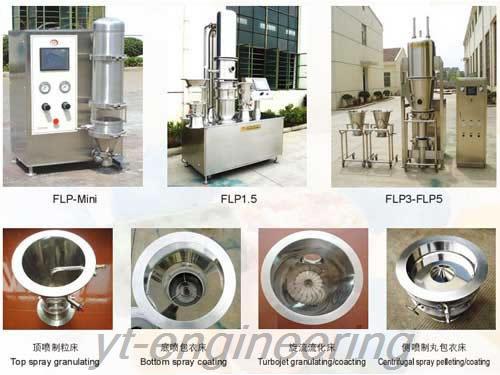

2.In the granulator coater, top-spray is for granulating, bottom spray for coating and tangential spray for pelleting.
3.Granulator coater is suited to moisture-proof, waterproof, shading and insulation coating and powders, granules, pills, enteric coating.
Parameters of Multifunction Granulation Coating Machine
Model | FLP-3 | FLP-5 | FLP-15 | FLP-30 | FLP-45 | FLP-60 | FLP-90 | FLP-120 | FLP- 150 | FLP- 200 | FLP- 300 | |||||||||||||||||||||
Feeding Amount (kg/batch) | 3 | 5 | 15 | 30 | 45 | 60 | 90 | 120 | 150 | 200 | 300 | |||||||||||||||||||||
Container Volume (L) | 12 | 22 | 50 | 100 | 155 | 220 | 300 | 420 | 550 | 670 | 1000 | |||||||||||||||||||||
Power of Fan (kW) | 4 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 18.5 | 22 | 22 | 30 | |||||||||||||||||||||
Noise (db) | Isolation processing for the fan, noise < 75db | |||||||||||||||||||||||||||||||
Compressed Air Pressure (MPa) | 0.6 | |||||||||||||||||||||||||||||||
Compressed Air Consumption (m3/min) | 0.4 | 0.4 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | 1.1 | 1.3 | 1.6 | |||||||||||||||||||||
Steam Pressure (MPa) | 0.4 ~ 0.6 | |||||||||||||||||||||||||||||||
Steam Consumption (Kg/h) | 35 | 60 | 99 | 120 | 130 | 140 | 161 | 180 | 310 | |||||||||||||||||||||||
Electric Heating Power (Kw) | 6 | 9 | Customized | |||||||||||||||||||||||||||||
Dimensions of main engine (L×W×H) (mm) | 850 × 760 × 2600 | 1000× 860 × 2600 | 1100× 1010× 3030 | 1250× 1160× 3120 | 1530 × 1320 × 3420 | 1530× 1460× 3680 | 1530× 1560× 3690 | 1650× 1660× 3920 | 1650 × 1760 × 4010 | 1650 × 1860 × 4160 | 1750 × 2060 × 4240 |
