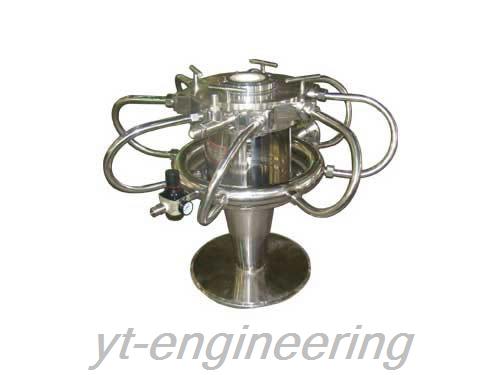

QLM Super Micro Air Stream Pulverize

QLM Super Micro Air Stream Pulverize

After crushed by hammer crusher of ultra micro pulverizer, the large materials are crushed into small ones and sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turnplate by vibrating feeder and sloping feeding pipe. When the grinding mill is at work, all the grinding rollers are rolling in the ring, and the materials are driven to the edge of the turnplate by the centrifugal force and fall down into the grinding chambers where the materials are repeatedly pressed, crushed and grinded by the rollers.

QLM ultra micro pulverizer is widely used in traditional Chinese medicines, western medicines, health products and food materials. It is especially suited to heat sensitive and volatile materials for super fine grinding. The followings are the specific applications of airflow pulverizer.
1.High hardness materials: silicon carbide, any kind of corundum, boron carbide, alumina, zirconia, garnet, zircon sand and diamond.
2.Non-metal mine materials: quartz, mica, graphite, kaolin, calcium carbonate, barite, mullite, medical stone and wollastonite.
3.Chemical materials: aluminum hydroxide, silicone, epoxy resin and all kinds of additives.
4.Food and pharmaceutical materials: pollen, hawthorn, pearl powder, ganoderma lucidum, all kinds of vegetables, all kinds of Chinese herbal medicine and a variety of health products.
5.Metal materials: aluminum powder, magnesium powder, zinc powder, tin powder and copper powder.
6.Other materials: ceramic, refractory, electronic, magnetic, and photocopying materials.

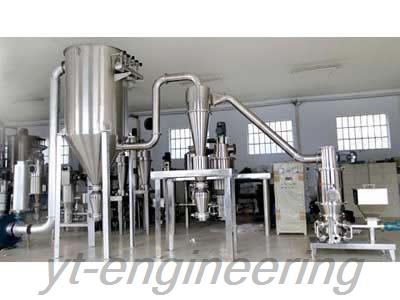

1.The whole production process of ultra micro pulverizer is fully enclosed continuous operation, thus it has no dust pollution.
2.The airflow pulverizer equipment will greatly lighten pollution and noise by using dust cleaner and muffler, which has achieved environmental protection requirement.
3.Ultra micro pulverizer is fully in accordance with GMP standard. The equipment is simply designed without any dead angle.
4.Due to the high air velocity and impact force, airflow pulverizer is capable of powder particles of 0.5 to 10 microns.

Parameters of Ultra Micro Pulverizer

Model QLM-1 QLM-3 QLM-6 QLM-10 QLM-20 QLM-40 QLM-80
Feeding Size (mm) ≤ 1 ≤ 2 ≤ 2 ≤ 2 ≤ 3 ≤ 3 ≤ 3
Products Size (d97=μm) 5 5 5 5 5 5 5
Crushing Production (kg/h) 0.2 to 6 3 to 60 30 to 210 40 to 420 60 to 1200 120 to 2500 400 to 6000
Air consumption (m3/min) 1 3 6 10 20 40 80
Air Pressure (Mpa) 1 1 1 0.8 0.8 0.8 0.8 to 1
Installed Power (kw) 14 28 58 78 150 310 610

Jiangsu Yutong Drying Engineering Co.,Ltd. is a professional drying machine manufacturer and airflow pulverizer equipment supplier in China. Yutong possesses 10 professional engineering and technical personnel and over 100 sets of processing equipment. Over the years, we make our effort to the development and production of ultra micro pulverizers, drying equipment, grinding machine and blending machine. For more information about airflow pulverizer equipment, please feel free to contact us.
