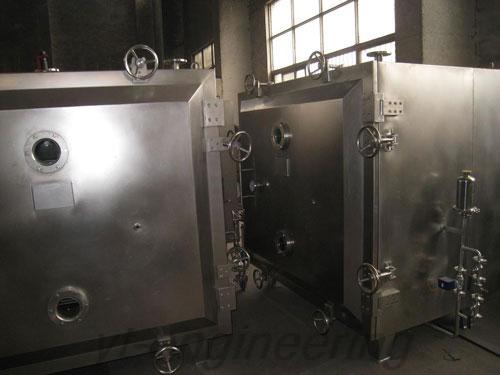

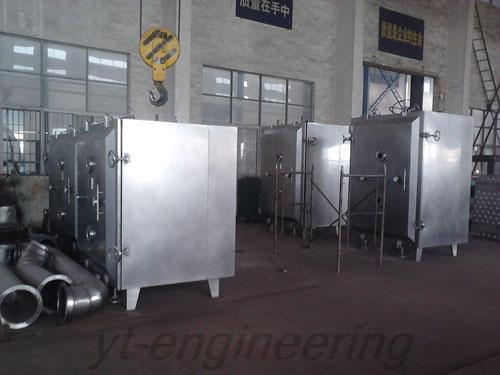

日本FZG /YZG Square/Round Vacuum Drying Machine
Description

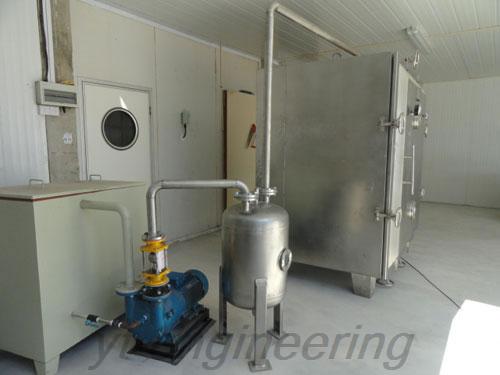

Vacuum drying refers to dry the materials under vacuum condition, and use vacuum pump to extract air and wet, thus accelerating drying rate. YZG round vacuum dryer and FZG square vacuum dryer belong to static vacuum drying machine. Under vacuum conditions, the boiling point of material solvent is reduced, making this machine to dry unstable or thermosensitive materials. Additionally, the vacuum dryers have excellent sealing ability, so they are also used for drying the materials requiring solvent recovery or materials with poisonous gas.
Application
YZG round vacuum dryers and FZG square vacuum dryers are widely used in the pharmaceutical, nourishment, food, chemical, dyes, electronics and other industries. Our vacuum drying machines accord with the requirements of GMP standards.
Features
1.Before drying, it can carry out disinfection treatment, and the drying process is with no impurity.
2.Our static vacuum drying machine can get relatively higher drying rate at low temperature, and it can make full use of the heat.

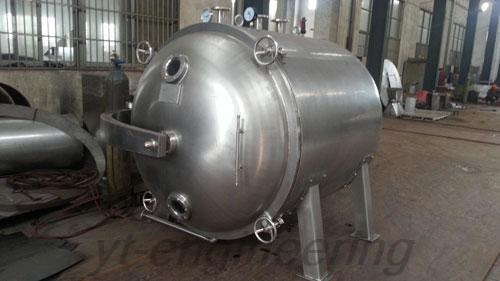

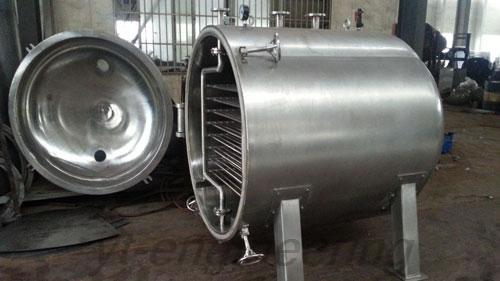

3.YZG round vacuum dryer is a kind of static vacuum dryer, which will not damage the shape of the material.
Parameters of Vacuum Drying Machine
| Model | YZG-600 | YZG-1000 | YZG-1400A | FZG-8 | FZG-15 | FZG-30 | FZG-38 |
| Internal Size of Drying Oven (mm) | ф600 × 976 | ф1000 × 1527 | ф1400 × 2054 | 730 × 1200 × 1450 | 1500 × 1400 × 1220 | 2200 × 1500 × 1500 | 2200 × 1500 × 1600 |
| External Size Of Drying Oven (mm) | 1135 × 810 × 1020 | 1693 × 1190 × 1500 | 2386 × 1675 × 1920 | 930 × 1380 × 1540 | 1513 × 1924 × 2060 | 2400 × 1680 × 2050 | 2400 × 1680 × 2250 |
| Layers of Drying Rack | 4 | 6 | 8 | 8 | 8 | 8 | 10 |
| Interlayer Distance (mm) | 81 | 102 | 102 | 122 | 122 | 122 | 122 |
| Size of Drying Tray (mm) | 310 × 600 × 45 | 250 × 410 × 45 | 400 × 600 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 | 460 × 640 × 45 |
| Drying Tray Number | 4 | 12 | 32 | 16 | 32 | 64 | 80 |
| Pressure of Drying Rack Tube (Mpa) | ≤ 0.784 | ||||||
| Temperature of Drying Rack (℃) | -35 to 150 | ||||||
| No-load Vacuum degree within the tank (Mpa) | -0.09 to 0.096 | ||||||
| Weight of drying oven (kg) | 250 | 800 | 1400 | 1680 | 2100 | 2850 | 3200 |
As a professional vacuum drying machine manufacturer and supplier, Lantoky mainly provides SZG double cone vacuum dryer, DZG sterile single-arm rotary vacuum dryer, ZKG vacuum harrow dryer, YZG round vacuum dryer and FZG square vacuum dryer. In addition to vacuum drying machine, we have mixing machine, granulating machine, coating machine and grinding machine to meet customers’ demands.
