CSJ Coarse Pulverizer

CSJ Coarse Pulverizer

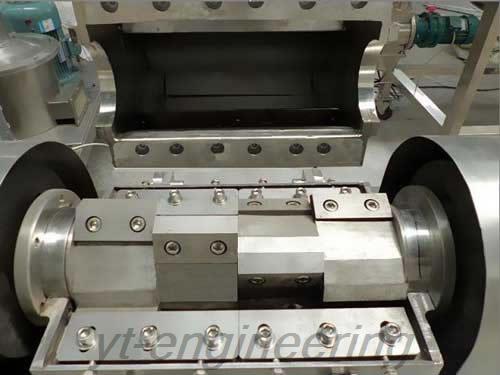

This rough pulverizer is of vertical crushing structure. After the material is fed into the crushing chamber through a hopper and impacted by the rotating knife, they are crushed by simultaneous cutting of both fixed and movable knives and rotating. At last they flow to the exit automatically under the effect of rotating centrifugal force.

CSJ coarse grinder is broadly used in pharmaceutical, chemical, metallurgical, food and construction industries. Rough pulverizer is suited to hard and difficult crushing materials including plastic, copper wire, Chinese herbal medicine and rubbers.

Rough pulverizer has a good crushing effect to all general materials whatever its viscosity, hardness or softness.

Parameters of Coarse Grinder

Model CSJ-250 CSJ-400 CSJ-600
Feeding Size ≤ 100mm ≤ 100mm ≤ 100mm
Finished Particles 0.5 to 20mm 0.5 to 20mm 0.5 to 20mm
Spindle Speed 940rpm 940rpm 1000rpm
Power 4Kw 5.5Kw 11Kw
Output 50 to 400Kg/h 250 to 600Kg/h 600 to 1500Kg/h

Note: Due to the material difference of coarse pulverizer, there is a big difference in output.

Over the years, Yutong is devoted to the development and production of coarse crusher equipment. We emphasize scientific and technological innovation and cooperate with many famous colleges to develop new products. Yutong has obtained the ISO9001 international quality system certificate. If you are interested in rough pulverizer, drying machine, mixing machine as well as other equipments, please feel free to contact us.
