DDT Dynamic Multifunctional Extractor
Description

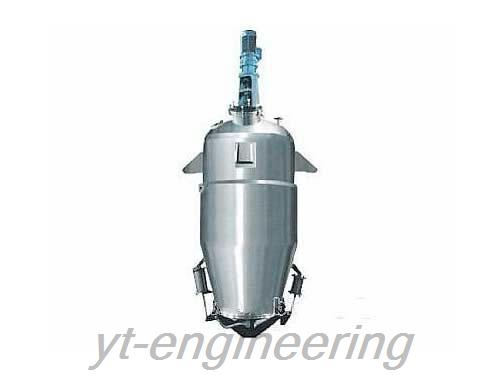

The upper half of DDT dynamic multifunctional extractor is straight type and the lower part is positive cone type.
Application
Dynamic multifunctional extractor is mainly used for decoction, extraction, hot reflux extraction and circulation leaching of Chinese medicine with the mediums of water or organic solvents. Meanwhile, during extracting process, it can recycle volatile oil.
Features
1.DDT dynamic multifunctional extractor features high efficiency and energy saving.
2.This dynamic extraction tank features high drug concentration of extracting solution.
3.The diameter of dynamic extraction tank is large, which makes the equipment more stable and reliable.
4.Slag-discharged door of dynamic multifunctional extractor adopts air pressure on-off system. Equipped with self-lock device, it’s stable and reliable to operate and lowers failure cost.
5.The feeder of dynamic extraction tank adopts manual shutter structure; it’s convenient and easy to use.
Parameters of Dynamic Multifunctional Extractor
Model | DDT-500 | DDT -1000 | DDT -2000 | DDT -3000 | DDT -6000 |
Equipment Volume (m3) | 0.5 | 1.0 | 2.0 | 3.0 | 6.0 |
Diameter of Main Body (mm) | 800 | 1000 | 1200 | 1400 | 1600 |
Diameter of Jacket (mm) | 900 | 1100 | 1300 | 1500 | 1700 |
Diameter of Feeder (mm) | 200 | 200 | 300 | 300 | 300 |
Diameter of Slagging Door (mm) | 600 | 800 | 1000 | 1000 | 1000 |
Working Pressure of Inner Equipment (Mpa) | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Working Pressure of Inner Jacket (Mpa) | 0.30 | 0.30 | 0.30 | 0.30 | 0.30 |
Height of Main Engine (mm) | 1800 | 2800 | 3400 | 4500 | 5400 |
Weight (kg) | 1000 | 1300 | 1800 | 2300 | 3000 |
Mixing Power (kw) | 1.1 | 3 | 4 | 5.5 | 7.5 |
Condenser Area (m2) | 2.0 | 5.0 | 5.0 | 8.0 | 10.0 |
Cooler Area (m2) | 1.0 | 1.0 | 1.0 | 1.0 | 1.5 |
Filter specification | DN300×400 | DN300×400 | DN300×400 | DN300×400 | DN300×400 |
Mist eliminator specification | DN150 | DN150 | DN200 | DN200 | DN200 |
Oil-water separator specification | DN200×800 | DN200×800 | DN300×1000 | DN300×1000 | DN300×1000 |
Founded in August, 2000, Lantoky Drying Engineering is a professional dynamic multifunctional extractor manufacturer and granulating machine supplier in China. Our products are widely used in pharmaceutical, food, chemical, light industry, agriculture, fishery, dyes, pigment and plastic rubber industry. Lantoky implements strict quality control system to guarantee the performance dynamic extraction tank. The quality of dynamic multifunctional extractor is repeatedly checked during each stage of production. Additionally, extracting machine as well as other machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
