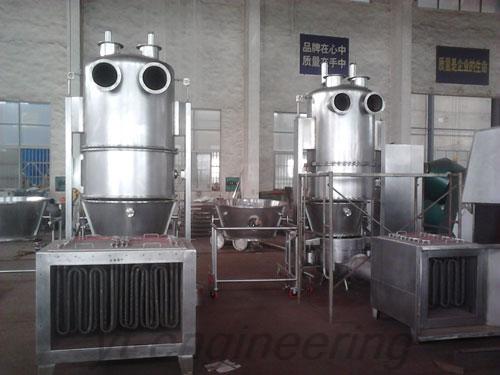

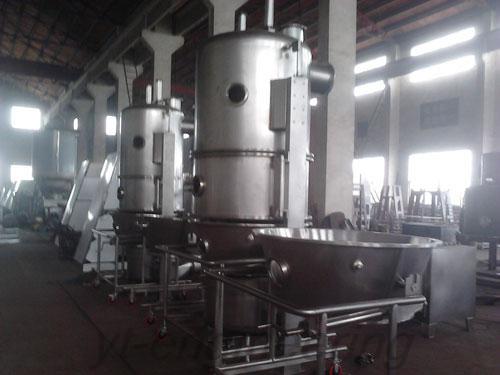

FG Vertical Fluidizing Bed Dryer
Description
FG vertical fluidizing dryer can utilize nitrogen as the carrier, which can effectively prevent oxidation and keep the original fragrance and protein component. By adopting special design, this fluid bed dryer enables to recycle organic solvent.
Application
FG vertical fluidizing dryer is designed and manufactured for drying powdery or granular materials in the pharmaceutical, health care products, food, chemical and other industries.
Features of Vertical Fluid Bed Dryer
1.There is a filter bag built in the vertical fluidizing dryer. This machine has compact structure.
2.This drying equipment has no dead angle and is easy to clean.
3.There is no cross pollution between the material and air.
4.This fluid bed dryer operates under closed negative pressure, no dust explosion.
5.Using anti-static filter materials, our vertical fluidizing dryer operates safely and stably.
6.This fluidizing dryer meet the requirements of GMP standards.
Technical Parameters of FG Vertical Fluidizing Bed Dryer
Model | FG3 | FG5 | FG30 | FG60 | FG120 | FG200 | FG300 | FG500 | ||
Item | Unit | |||||||||
Material Capacity | Diameter | mm | 300 | 400 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
Volume | L | 12 | 22 | 100 | 220 | 420 | 670 | 1000 | 1500 | |
Production Capacity | Minimum | kg/batch | 1.5 | 4 | 15 | 30 | 80 | 100 | 150 | 250 |
Maximum | kg/batch | 4 | 6 | 36 | 72 | 140 | 240 | 360 | 600 | |
Steam Consumption | kg/batch | 12 | 23 | 70 | 140 | 211 | 282 | 366 | 465 | |
Compress Air Amount | m3/min | 0.3 | 0.3 | 0.3 | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | |
Fan Power | kw | 2.2 | 4 | 5.5 | 11 | 18.5 | 22 | 30 | 45 | |
Temperature | ℃ | Normal temperature to 120℃ automatic adjustment | ||||||||
Material Yield | % | >99 | ||||||||
Operating Time | mini | 15 to 30 (depending on materials) | ||||||||
Final Moisture Content | % | 0 to 0.2 (depending on materials) | ||||||||
Noise | db | ≤ 75 | ||||||||
Height of Main Machine | mm | 2100 | 2300 | 2500 | 3000 | 3300 | 3800 | 4000 | 4400 |

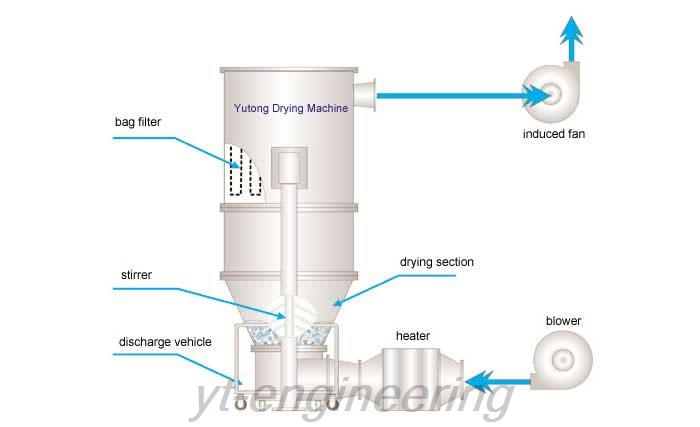

Flow Chart of Vertical Fluidizing Dryer
As a China fluid bed dryer manufacturer and supplier, we have vertical fluidizing dryer, high efficiency boiling dryer for your choice. Lantoky possesses 10 professional engineering and technical personnel and over 100 sets of processing equipment. Over the years, we make our effort to the development and production of granulating machine, drying machine, grinding machine and blending machine. Vertical fluidizing dryer as well as other machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
