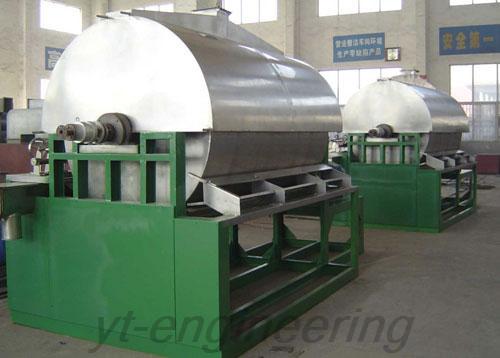

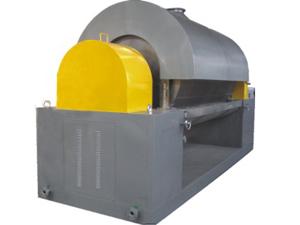

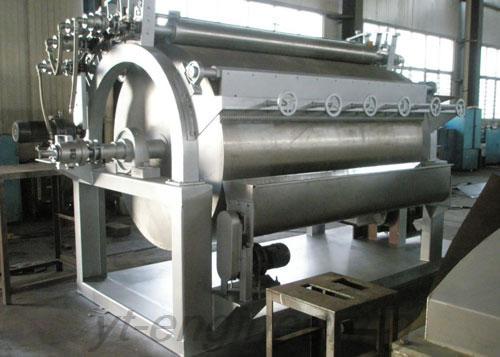

TG Drum Scraper Dryer
Description
TG drum scraper drying machine makes the liquid or slurry materials form a thin film on the surface of the heated drum, and the materials will be dried as the drum turns. The dried materials will be scrapped off with a scraper. Exposed drum surface will contact with the raw materials in order to form thin film for drying again.
Application
TG drum dryers are widely used for drying viscous and pasty materials in the food, health care products, chemical, pharmaceutical and environmental protection industries.
Features of Drum Scraper Drying Machine
1.Using steam or heat conduction oil as heat source results in large heating area, high heat efficiency and uniform heating.
2.The drying time of this drum dryer is short, generally 7 to 30 seconds. Our drum scraper drying machine is suitable for drying heat sensitive materials.
3.The heat transfer and mass transfer process of wet material film is in the same direction and has large temperature gradient, which makes the material film surface retain higher evaporation intensity.
4.TG drum scraper drying machine has the advantages of compact structure, easy operation and convenient maintenance.
5.Double drum dryer can be designed and manufactured according to the demands of users.
Technical Parameters of Drum Scraper Drying Machine
Model | Drum Size (mm) | Drying Capacity (kg/h) | Effective Heating Area (m2) | Steam Consumption (kg/h) | Motor Power (kw) | Dimensions (m) | Weight (kg) |
TG600 | Φ600 × 800 | 40 to 70 | 1.12 | 100 to 175 | 1.1 | 1.7 × 0.8 × 1.5 | 850 |
TG700 | Φ700 × 1000 | 60 to 90 | 1.65 | 150 to 225 | 2.05 | 2.1 × 1.0 × 1.8 | 1210 |
TG800 | Φ800 × 1200 | 90 to 130 | 2.26 | 225 to 325 | 3.75 | 2.5 × 1.1 × 2.0 | 1700 |
TG1000 | Φ1000 × 1400 | 130 to 190 | 3.30 | 325 to 475 | 4.75 | 2.7 × 1.3 × 2.3 | 2100 |
TG1200 | Φ1200 × 1500 | 160 to 250 | 4.24 | 400 to 625 | 4.75 | 2.8 × 1.5 × 2.5 | 2650 |
TG1400 | Φ1400 × 1600 | 210 to 310 | 5.28 | 525 to 775 | 6.25 | 3.2 × 1.7 × 2.8 | 3220 |
TG1600 | Φ1600 × 1800 | 270 to 400 | 6.79 | 675 to 1000 | 6.25 | 3.4 × 1.9 × 3.2 | 4350 |
TG1800 | Φ1800 × 2000 | 330 to 500 | 8.48 | 825 to 1250 | 8.6 | 3.6 × 2.1 × 3.5 | 5100 |
TG1800A | Φ1800 × 2000 | 420 to 630 | 10.60 | 1050 to 1575 | 8.6 | 4.1 × 2.1 × 3.5 | 6150 |
Lantoky Drying Equipment Co., Ltd. is a professional drum dryer manufacturer and supplier in China. In addition to drum scraper drying machine, we have spray dryers, belt dryers, hot air oven, vacuum drying machine, air stream dryer, fluidized bed dryer as well as other drying machines. Lantoky carries out ISO9001 quality management system in order to ensure the quality of drum dryers. Till now, we have exported drum scraper drying machines to America, Britain, Germany, Cyprus, Turkey, Greece, Ukraine, Malaysia, India and other countries.
