GHL High Speed Mixing Granulator

GHL High Speed Mixing Granulator

Working Principle

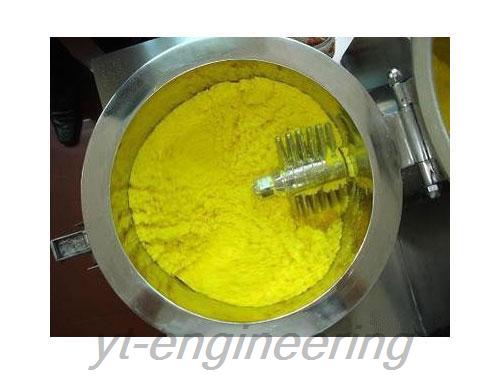

The powder material and adhesives are mixed fully at the bottom of GHL high speed mixing granulator to become humid soft material, and then it is cut through side-mounted high-speed crusher and become uniform humid granules. Therefore the process of dry mixing, humid mixing and granulation is completed in the same container. And also the time of process is reduced. This machine meets the GMP standard.

Application
GHL high speed mixing granulator is a highly efficiency equipment that can mix different powder materials and granulate particles in one procedure. This mixing granulation machine is widely used for pharmaceutical industry such as tablets and capsule, food, chemical, cosmetic and plastic industry.

Features of GHL High Speed Mixing Granulator
1.GHL high speed mixing granulation machine adopts horizontal cylinder structure. Its structure is reasonable.
2.Compared with the traditional process, adhesive can be saved and the drying time can be shorted.
3.This machine features granulating in fluidization and the granule is like a ball. Its fluidity is good.
4.The time of dry mixing is 2 minutes and the time of granulating is 1 to 4 minutes. Compared with the traditional process, 4 to 5 times of efficacy is raised.
5.The whole operation of mixing granulation machine has strict security measures.

Parameters of Mixing Granulator

Item  Specification
Name Unit 10 50 150 200 250 300 400 600
Capacity L 10 50 150 200 250 300 400 600
Output kg/batch 3 15 50 80 100 130 200 280
Admix Speed r.p.m 300/600 200/400 180/270 180/270 180/270 140/220 106/155 80/120
Admix Power kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
Incise Speed r.p.m 1500/3000
Incise Power kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
Amount of Pressure Air (m3/min) 0.6 0.9 0.9 0.9 0.9 1.1 1.5 1.8

Founded in August, 2000, Jiangsu Yutong Drying Engineering Co.,Ltd. is a professional drying machine manufacturer and mixing granulation machine supplier in China. Our products are widely used in pharmaceutical, food, chemical, light industry, agriculture, fishery, dyes, pigment and plastic rubber industry. Mixing granulators are exported to America, Britain, Germany, Cyprus, Turkey, Greece, Ukraine, Malaysia, India, Vietnam, Thailand, Bangladesh, Singapore, Taiwan, Nigeria and Mexico. If you have any question about our products, please feel free to contact us.
