SSL Duplex Filter

Introduction

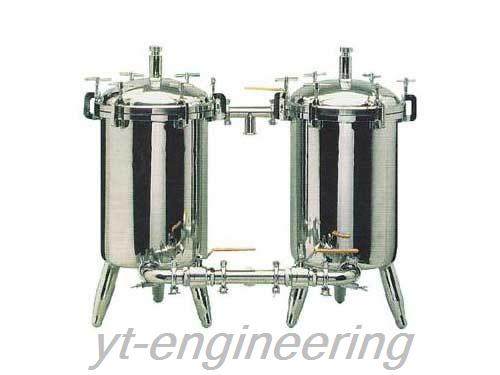

Duplex filter, also known as duplex switching filter, is made up of two sets of stainless steel filters in parallel. SSL double-barrel filter is applicable to filter fresh milk, sugar, beverage, glue liquid, China herb and all kinds of fine particle impurities. Two filter cartridges can simultaneously or alternately filter. It can replace filtering screen without stopping the duplex filter, so it is especially suitable for continuous production.

Features of SSL Double-Barrel Filter
1. It is composed of two cylindrical barrels and connecting lines. The inside and outside surfaces have been polished. The filter cartridge is installed with stainless steel filtering screen and filtering screen supporting basket. Deflation valve installed at the top of duplex filter plays the role of discharging air in the filter while filtering.

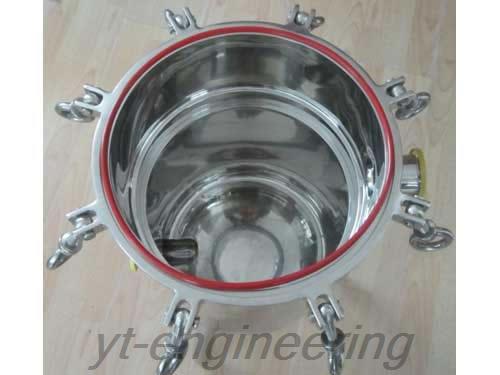

2. The top cover and filter cartridge of double-barrel filter are connected adopting quick-opening structure. This is convenient for washing and changing filtering screen.
3. The connecting lines adopt loose joint or clamp connection modes. The feeding and discharging valves of duplex filter adopt butterfly valves for opening and closing, which is resistant to high pressure and high temperature.
4. SSL double-barrel filter is flexible and convenient to operate. There is no material liquid leakage, so it is much healthier.

Parameters of SSL Duplex Filter

Filtering Area (m2)		0.15
		0.30
		0.40
Filtering Ability (t/h)		2
		5
		10
Applicable Temperature (℃)		≤ 100
Aperture of Filtering Screen (Mesh)		60 to 400 (Optional)
Working Pressure (MPa)		≤ 0.3
Texture of Double-Barrel Filter		SUS304L
		SUS316L
Diameter of Inlet Tube and Outlet Tube (mm)		DN32
		DN40
Inside and Outside Surface Treatment Mode		Inside Surface: Mirror Polish Outside Surface: Mirror Polish or Matt Finishing
Specification (m2)	0.15	0.25	0.35
Flow (T/H)	3	5	10
Overall Dimension	1050 × 420 × 1087	1300 × 500 × 1100	1520 × 550 × 1200

Note: The unit “mesh” refers to the quantity of empty holes on one inch filtering screen (2.54 cm).

Over the years, Lantoky is devoted to development and production of duplex filters in China. We emphasize scientific and technological innovation, and we cooperate with many famous colleges to develop new products. Our double-barrel filters are well received by more and more customers. Our company develops quickly and accumulates abundant capital and technology strength. If you are interested in our duplex filters, please fee free to contact us.
