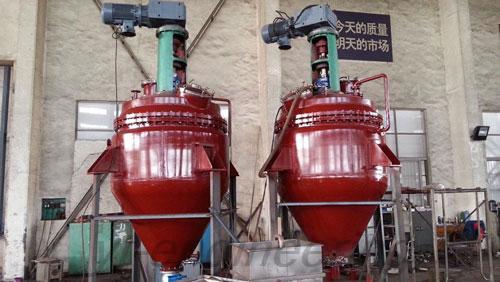

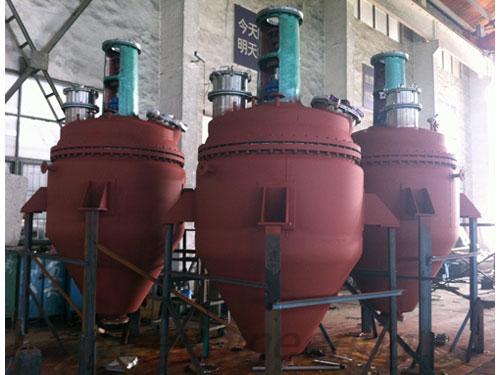

LHG Ribbon Vacuum Dryer Machine

Description
LHG ribbon vacuum drying machine is a high-efficiency vertical type drying equipment which integrates drying, crushing, vacuum decompression and mixed powder. Its drying efficiency is three to five times of the same specification double cone vacuum dryer.
This ribbon vacuum dryer machine is used for drying powdery materials in the pharmaceutical, nourishment, nourishment, food, chemical, pesticide and other industries. The whole process can achieve closed continuous operation. This vacuum drying machine is the preferred equipment for the above industries.

Features of Ribbon Vacuum Dryer Machine
1.The working process of LHG drying machine uses intermittent operation, after the wet materials enter into the stock bin, through the wall jacket to heat and dry the materials. Transmission shaft heating is also available, which can heat more sufficiently.
2.With overall sealing system, non-pollution and high purity, this ribbon vacuum dryer is especially used for mixing and drying pharmaceutical intermediates and crude drugs as well as sterile APIs.
3.This ribbon vacuum drying machine adopts small angle taper type tube structure, which makes quick unloading speed, clean and no accumulations.
4.LHG ribbon vacuum dryer machine possesses compact structure, smooth movement, simple operation and long service life.

Main Components
LHG ribbon vacuum drying machine consists of motor, reducer, rack, mechanical seal, filer, helical ribbon mixer, conical cylinder with jacket heating and discharging valve.

Parameters of LHG Ribbon Vacuum Dryer Machine

Model	Volume (L)	Each Handling Capacity (kg)	Material Diameter (mesh)	Motor Power (kw)
LHG-1000	1000	400 to 600	20 to 600	7.5
LHG-1500	1500	600 to 900	20 to 600	11
LHG-2000	2000	800 to 1200	20 to 600	15
LHG-3000	3000	1200 to 1800	20 to 600	22
LHG-4000	4000	1600 to 2400	20 to 600	30

Lantoky Drying Equipment Co., Ltd. is a professional drying machine manufacturer and ribbon vacuum dryer supplier in China. Lantoky possesses 10 professional engineering and technical personnel and over 100 sets of processing equipment. Over the years, we make our effort to the development and production of granulating machine, drying equipment, grinding machine and blending machine. Our drying machines have obtained several national patents and we have powerful research and development as well as innovation capacity.
