PLG Continuous Plate Dryer

Description
PLG continuous plate dryer is a kind of high-efficiency continuous drying equipment. Its unique structure and working principle determine this drying machine has the characteristics, such as high thermal efficiency, low energy consumption, small space occupation and easy operation. PLG continuous plate dryer can be divided into normal pressure type, close type and vacuum type. Its drying areas range from 4 m2 to 180 m2. Equipped with corresponding auxiliary equipment, this drying machine can meet the drying requirements of various materials.

Working Principle

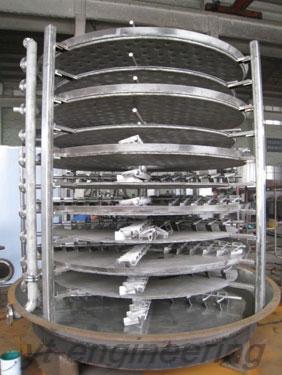

Wet materials are continuously fed into the first layer drying plate on the top of the dryer. They will be turned and stirred by the rakes whose arms make rotational motion. The materials flow through the surface of the drying plate along the index spiral line. On the small plate the materials will move to the outer edge and drop down to the large drying plate. On the big one they will move inward and drop to the small plate on the next layer from the central hole. Both small and large drying plates are arranged alternately so that the materials can get through the whole continuous plate dryer. The heating media will be led into the hollow drying plate. The heating media includes saturated steam, hot water and conduction oil, and it will enter from one end and derive from the other end. The dried materials will drop from the last layer of the drying plate to the bottom layer of the shell. Finally, they will be transferred to the discharge port by the rakes. The moisture escapes from materials and will be expelled from the wet discharge port on the top cover. The moisture of vacuum type drying machine will be drawn out by the vacuum pump. Drying pasty and heat sensitive materials, this continuous plate dryer can recover the solvent and conduct pyrolysis and reaction operation.

Application
PLG continuous plate dryer is appropriate for drying, calcining, pyrolysis, cooling, reaction and sublimation in the chemical, pharmaceutical, pesticide, food and agricultural industries. This drying machine is mainly used in the following fields:
1.Organic chemical products: resin, melamine, aniline, stearate, calcium formate and other organic chemical material and intermediate
2.Inorganic chemical products: calcium carbonate, magnesium carbonate, white carbon black, sodium chloride, cryolite, various sulfate and hydroxide
3.Medicine and food: cephalosporin, vitamin, medicinal salt, aluminium hydroxide, tea, ginkgo leaf and starch
4.Fodder and fertilizer: biological potash fertilizer, protein feed, grain, seed, herbicide and cellulose

Parameters of Continuous Plate Drying Machine

Specifications	Outer Diameter (mm)	Height (mm)	Drying Area (m2)	Power (kw)		Specifications	Outer Diameter (mm)	Height (mm)	Drying Area (m2)	Power (kw)
1200/4	1850	2608	3.3	1.1		2200/8	2900	5782	55.4	5.5
1200/6		3028	4.9			2200/20		6202	61.6
1200/8		3448	6.6	1.5		2200/22		6622	67.6	7.5
1200/10		3868	8.2			2200/24		7042	73.9
1200/12		4288	9.9			2200/26		7462	80
1500/6	2100	3022	8.0	2.2		3000/8	3800	4050	48	11
1500/8		3442	10.7			3000/10		4650	60
1500/10		3862	13.4			3000/12		5250	72
1500/12		4282	16.1	3.0		3000/14		5850	84
1500/14		4702	18.8			3000/16		6450	96
1500/16		5122	21.5			3000/18		7050	108	13
2200/6	2900	3262	18.5	3.0		3000/20		7650	120
2200/8		3682	24.6			3000/22		8250	132
2200/10		4102	30.8			3000/24		8850	144
2200/12		4522	36.9	4.0		3000/26		9450	156	15
2200/14		4942	43.1	5.5		3000/28		10050	168
2200/16		5362	49.3			3000/30		10650	180

As a professional drying machine supplier in China, we have passed ISO international quality system certification. Our products like continuous plate dryers have obtained high quality recommendation certificate issued by U.S. Asia Economic Trade Cooperation Committee. Over the years, we make our effort to the development and production of granulating machine, grinding machine and drying machine. If you are interested in continuous plate dryers, please feel free to contact us.
