日本GFG High Efficiency Boiling Dryer
Description
As a professional fluidized bed dryer manufacturer, Lantoky provides vertical fluidizing dryer and high efficiency boiling dryer for your selection. The heated and filtered air is guided into by the draught fan and passed through the screen plate of the hopper. In the working room, the air forms to fluidization state through mixing and negative effect. The moisture will be quickly evaporated and removed, and the materials can be rapidly dried.
Application
1.This fluidized bed dryer can be used for screw extrusion particles and swing granules.
2.GFG high efficiency boiling dryer is used to dry wet materials and powdery materials in medicine, food, health care products, feed, pesticide, chemical and other fields.
3.This drying machine is suitable for drying large particles, small block and viscous granular materials.
4.This fluidized bed dryer also can be used for the materials whose volumes will change when drying, such as konjac and polyacrylamide.
Features
1.GFG high efficiency boiling dryer adopts prototype structure, its interior is fine polished in order to avoid dead angle.

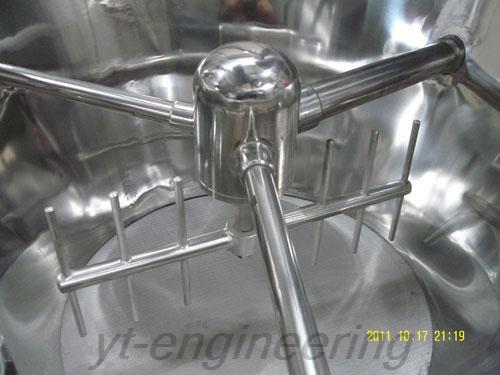

2.The hopper with mixing function can avoid forming channel when wet materials are agglomerated and dried.
3.This fluidized bed dryer uses overturning discharge method, which is easy and convenient to unload the materials. The automatic feed and discharge system can be designed with your requirements.
4.GFG high efficiency boiling dryer has rapid drying rate and uniform temperature, so the drying time of each batch is about 20 to 60 minutes.
5.This fluidized bed dryer operates under closed negative pressure, and the air flow is filtered. Therefore, this machine is easy to handle and convenient to clean.
Parameters of High Efficiency Boiling Dryer
| Model | GFG60 | GFG100 | GFG120 | GFG150 | GFG200 | GFG300 | GFG500 | ||
| Feeding Capacity (kg) | 60 | 100 | 120 | 150 | 200 | 300 | 500 | ||
| Fan | Air Volume (m3/h) | 2361 | 3488 | 3488 | 4901 | 6032 | 7800 | 10800 | |
| Air Pressure (mm H2O) | 594 | 533 | 533 | 679 | 787 | 950 | 950 | ||
| Power (kw) | 7.5 | 11 | 11 | 15 | 22 | 30 | 45 | ||
| Mixing Power (kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.1 | ||
| Mixing Speed (r/min) | 11 | ||||||||
| Steam Consumption (kg/h) | 141 | 170 | 170 | 240 | 282 | 366 | 451 | ||
| Operating Time (min) | 15 to 30 (depending on materials) | ||||||||
| Machine Height | Square (mm) | 2750 | 2850 | 2850 | 2900 | 3100 | 3300 | 3650 | |
| Round (mm) | 2700 | 2900 | 2900 | 2900 | 3100 | 3600 | 3850 | ||
Over the years, we make our effort to the development and production of fluidized bed dryer, granulating machine, drying machine and blending machine in China. Lantoky promises to provide customers with at least 10 years spare parts service, in order to avoid machine idleness due to the age of the equipment. Our products like high efficiency boiling dryers have been exported to America, Britain, Germany, Cyprus, Turkey, Greece, Ukraine, Malaysia, India, Vietnam, Thailand, Bangladesh, Singapore, Taiwan, Nigeria and Mexico.
