QJG Stainless Steel Jacket Pot
Introduction
QJG stainless steel jacketed pot is made of stainless steel configured with pressure gauge, safety valve and electric control cabinet. It is widely used for processing candy, pharmaceutical, dairy products, wine, pastries, drinks, candied fruit, canned food, etc. Jacketed kettle is also used in large restaurant or canteen for boiling soup, stewing, boiling porridge, etc. QJG jacketed pot is an ideal equipment to improve food processing quality, shorten time and improve working condition.
Classification

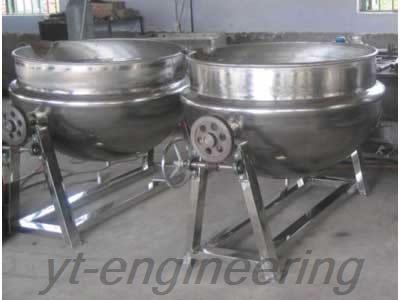

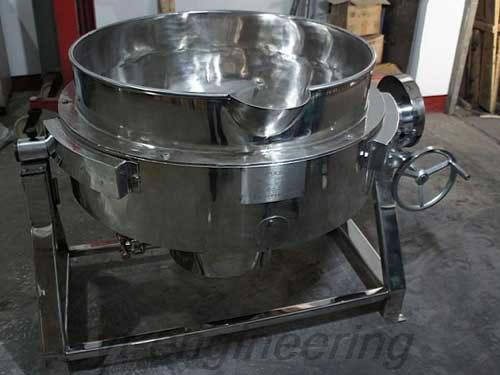

1. According to heating method, it can be divided into tilting type electrical heating jacketed kettle, tilting type steam jacketed pot and tilting type fuel gas sandwich kettle.

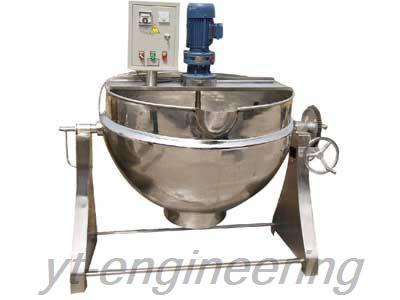

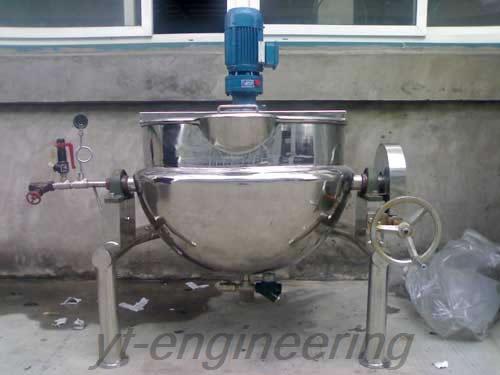

2. According to technological need, it can be classified into tilting type pot with stirrer and tilting type jacketed kettle without stirrer.

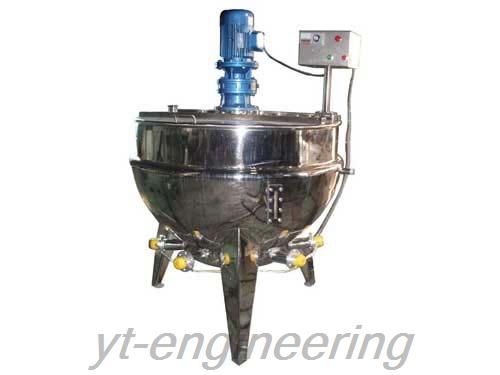

3. According to structure, it can be divided into vertical type jacketed pot (suitable for liquid) and tilting type sandwich kettle (suitable for block solid).
Parameters of QJG Stainless Steel Jacketed Kettle
Nominal Volume | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 |
Caliber(mm) | Φ 600 | Φ 700 | Φ 800 | Φ 900 | Φ 1000 | Φ 1100 | Φ 1200 | Φ 1300 | Φ 1400 |
Depth of Pan(mm) | 400 | 450 | 530 | 630 | 680 | 730 | 780 | 830 | 900 |
Steam Heat Transfer Area(m2) | 0.45 | 0.58 | 1.12 | 1.42 | 1.75 | 2 | 2.3 | 3.2 | 3.9 |
Heater Power (kw) | 9 | 9 | 15 | 18 | 18 | 24 | 24 | 27 | 30 |
Volume of Conduction Oil (L) | 30 | 36 | 45 | 60 | 70 | 80 | 100 | 200 | 250 |
Working Pressure | ≤ 0.09 Mpa (We can adjust according to customers’ actual using conditions.) | ||||||||
Stirring Speed | 36r/min (We can adjust according to customers’ actual using conditions.) | ||||||||
Stirring Power (kw) | 0.55 | 0.55 | 0.75 | 1.1 | 1.1 | 1.5 | 1.5 | 2.2 | 2.2 |
Note
1. The stirring power in the above table is standard configuration. If customers have special requests, please tell us.
2. The working pressure of interlayer is equal to or less than 0.09 Mpa. If clients have specific requirements, we can custom jacketed pots.
3. As for making different models of jacketed kettle, the following parameters should be included: material properties, working pressure, working temperature, special requirements, etc.
Lantoky Drying Engineering is a professional manufacturer and supplier of stainless steel jacketed pots in China. In addition, we also provide drying machine, grinding machine, granulating machine, extractor and concentrator equipment. Our company has been awarded as “AAA” enterprise by Shanghai International Credit Assessment Company. Our jacketed kettles are highly appraised by customers worldwide.
