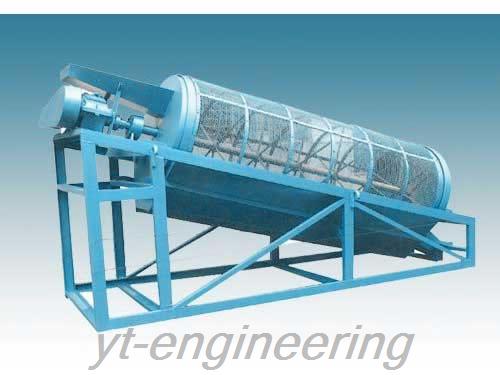

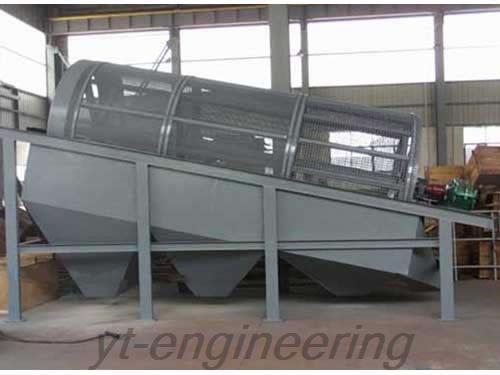

GTS Rotary Drum Screen

GTS Rotary Drum Screen

Introduction
Rotary drum screen is also known as rotary drum sieving machine. Due to simple processing setup, it is widely used for products classification in chemical engineering, mining, building, transportation and energy industries. This rotary screen is also used for classification and sieving of materials with medium and fine granules to improve the quality of materials.

Working Principle of Rotary Drum Screen
1. Motor drives the drum axis to do rotary motion. Reducer adjusts the drum to make it rotate with a certain rotate speed. Materials enter into the drum body of rotary screen through the feeding inlet. Under the effect of centrifugal force generated by rotating, materials are turned over in the drum and are separated from top to bottom through the sieving mesh.
2. Because sieving mesh of rotary drum screen has different dimensions, materials will be separated and sieved gradually. Materials with qualified granularity after sieved will be put into their hoppers and they will be sent by man or conveyor to the finished product station.
3. Qualified products will be discharged through the bottom discharging outlet of rotary screen. They are big granules. Therefore, unqualified products will be discharged through another discharging outlet.

Parameters of GTS Rotary Drum Screen

Model Processing Capacity per Hour (m3/h) Outside Diameter of Sieve (mm) Length (mm) Power (kw) Overall Diameter (mm)
GTS1230 20-50 Φ 1200 3000 3 3580 × 1590 × 1675
GTS1530 40-80 Φ 1500 3000 5.5 3980 × 1790 × 1975
GTS1830 80-150 Φ 1800 3000 7.5 4150 × 1870 × 2240
GTS2030 130-200 Φ 2000 3000 11 4230 × 1950 × 2950

Over the years, Yutong is devoted to development and production of rotary screens for years in China. We emphasize scientific and technological innovation, and we cooperate with many famous colleges to develop new products. Our rotary drum screens are well received by more and more customers. Our company develops quickly and accumulates abundant capital and technology strength. We provide a variety of rotary screens for customers to test and inspect.
