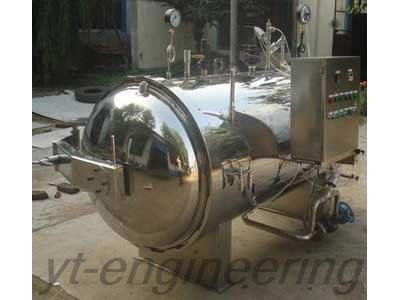

CT7C Steam Sterilizer Machine
Introduction
CT7C steam sterilizing pot mainly uses boiler steam to directly heat up for sterilization. It sterilizes food mainly for lengthening the shelf life of food and maintaining their nutrition and taste. Lantoky mainly provides GT7C 720, GT7C 1200, GT7C 2000 and GT7C 2400 horizontal steam sterilizers.
Application
CT7C steam sterilizing pot is extensively used in meat products, soy products, egg products, poultry, fruits and vegetables, tea, beverage and snack food processing production, pharmaceutical industry and other fields.
Features of CT7C Horizontal Steam Sterilizer
1. Steam sterilizing pot takes the steam with a certain pressure produced by boiler as the heat source. It is featured with fast heating, high thermal efficiency, even heating, easy control of heating temperature, and so on.
2. Made of Austenite type stainless steel, the inner pot of this horizontal steam sterilizer is resistant to acid and heat.
3. Steam sterilizing pot is also equipped with pressure gage and safety valve.
4. It is of beautiful appearance, easy installation, convenient operation and reliable performance.
Parameters of CT7C Horizontal Steam Sterilizer
Model | GT7C 720 | GT7C 1200 | GT7C 2000 | GT7C 2400 | |
Type | Low Level Pressure Vessel | ||||
Production Capacity (Jar) | 720 | 1200 | 2000 | 2400 | |
Inside Diameter (mm) | 900 | 1000 | 1100 | 1200 | |
Volume (m3) | 1.2 | 2.0 | 3.5 | 4.2 | |
Design Temperature | 143℃ | ||||
Working Temperature | 123℃ | ||||
Design Pressure | 0.3MPa | ||||
Working Pressure | 0.15MPa | ||||
Working Medium | Water, Steam and Compressed Air | ||||
Material of Main Pressurized Parts | A3 | ||||
Welding Coefficient | 0.7 | ||||
Corrosion Allowance | 1mm | ||||
Net Weight (kg) | 600 | 1100 | 1700 | 2000 | |
Overall Dimension (m × m × m) | Length | 2100 | 2800 | 3700 | 4000 |
Width | 1300 | 1450 | 1600 | 1600 | |
Height | 1650 | 1700 | 1800 | 1900 |
Lantoky Drying Engineering is a high-tech enterprise engaged in manufacturing steam sterilizing pots in China. We have obtained the ISO9001 international quality system certificate. Located in Jiaoxi town, a famous town of south of the Yangtze River, our company enjoys transportation advantage. Our horizontal steam sterilizers have been exported to America, Europe, the Middle East, West Africa, Southeast Asia and other regions and countries.
