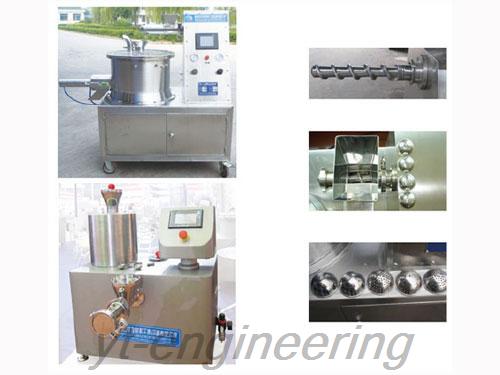

日本JW Extruding-Spheroid Pelletizing Machine
Description
Extruding-spheroid pellet machine is a kind of machine which extrudes and shapes the wet materials finished in the former process.
Features
1.During the granulating process of extruding-spheroid pellet machine, dry powder can be added to avoid adhesion.
2.The finished product of granulating machine is compact in surface, which makes it easy to for coating.
3.The finished granules from extruding-spheroid pellet machine have uniform size and high sphericity.
Parameters of Extruding-Spheroid Pellet Machine
| Specification | Capacity (kg/h) |
Diameter of Pellet (mm) | Installed Powder (kw) | Overall Dimensions (mm) |
| 5 | 3-5 | 0.6-3.5 | 4.2 | 900*680*1100 |
| 10 | 5-10 | 0.6-3.5 | 8.6 | 1550*950*1350 |
| 30 | 10-30 | 0.6-3.5 | 17 | 1850*950*1400 |
Founded in August, 2000, Jiangsu Yutong Drying Engineering Co.,Ltd. is a professional drying machine manufacturer and granulating machine supplier in China. Our products are widely used in pharmaceutical, food, chemical, light industry, agriculture, fishery, dyes, pigment and plastic rubber industry. We implement strict quality control system to guarantee the performance of extruding-spheroid pellet machines. The quality of granulating machine is repeatedly checked during each stage of production. Additionally, the granulating machine as well as other machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
