日本DWT Conveyor Belt Dryer
Description

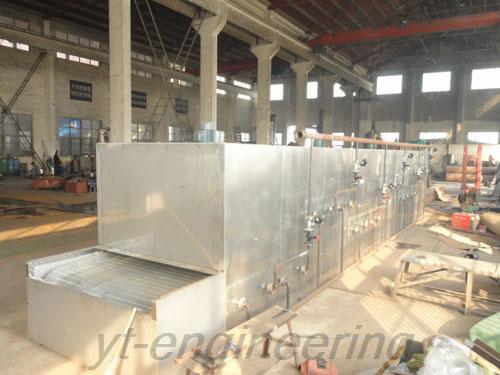

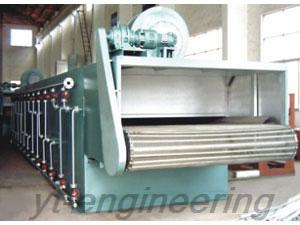

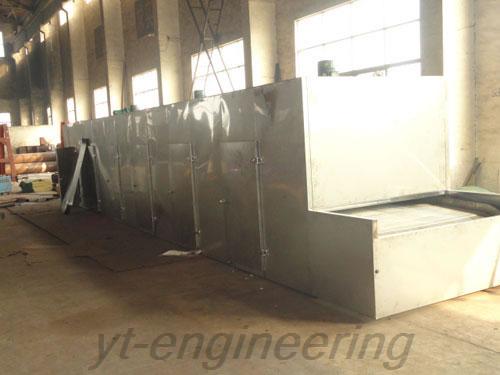

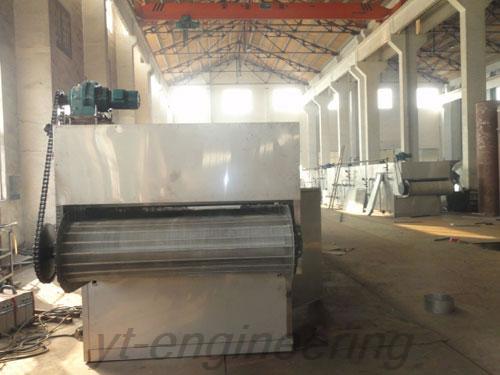

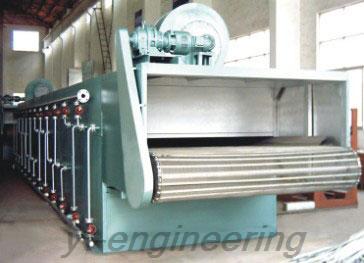

DWT conveyor belt dryer is continuous type drying equipment for mass production. It uses a feeder to uniformly distribute the material on the belt. The series belt drying machines are characterized by fast drying speed, high evaporation intensity and superior quality. After the paste materials made into rods by pelleting they also can be dried by our conveyor belt dryer.
Application
DWT conveyor belt dryer is used for drying sheet type, strip type and granular materials in food, medical, chemical, building materials, electronics as well as other industries. The series belt drying machines are particularly suitable for the materials with high moisture content and low temperature, such as dehydrated vegetables and Chinese herbal pieces.
Suitable materials include dehydrated vegetable, pellet feed, monosodium glutamate, chicken powder, shredded coconut stuffing, organic pigment, synthetic rubber, acrylic fiber, medicine, wooden product, plastic product, electronic component and so on.
For more information, please refer to DWT Conveyor Belt Dryer
Technical Parameters of DWT Belt Drying Machine
| Model | DWT-1.2-8 | DWT-1.2-10 | DWT-1.6-8 | DWT-1.6-10 | DWT-2-8 | DWT-2-10 | |
| Unit number | 4 | 5 | 4 | 5 | 4 | 5 | |
| Belt Width (m) | 1.2 | 1.2 | 1.6 | 1.6 | 2 | 2 | |
| Drying Section Length (m) | 8 | 10 | 8 | 10 | 8 | 10 | |
| Spreading Thickness (mm) | 10 to 80 | ||||||
| Temperature (℃) | 60 to 150 | ||||||
| Steam Pressure (Mpa) | 0.2 to 0.8 | ||||||
| Steam Consumption (kg/h) | 120 to 300 | 150 to 375 | 150 to 375 | 170 to 470 | 180 to 500 | 225 to 600 | |
| Drying Time (h) | 0.2 to 1.2 | 0.25 to 1.5 | 0.2 to 1.2 | 0.25 to 1.5 | 0.2 to 1.2 | 0.25 to 1.5 | |
| Drying Intensity (kgH2O/h) | 60 to 160 | 80 to 220 | 75 to 220 | 95 to 250 | 100 to 260 | 120 to 300 | |
| Fan Power (kw) | 6.6 | 8.8 | 9 | 12 | 12 | 16 | |
| Total Power (kw) | 7.15 | 9.55 | 9.55 | 12.75 | 12.55 | 16.75 | |
Besides conveyor belt dryer, we also produce mixing machine, grinding machine and granulating machine. As a professional belt drying machine manufacturer in China, Lantoky carries out ISO9001 quality management system in order to ensure the quality of our products. The quality of conveyor belt dryer is repeatedly checked during each stage of production. Additionally, our machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
