日本CH Trough Food Mixer Machine
Description

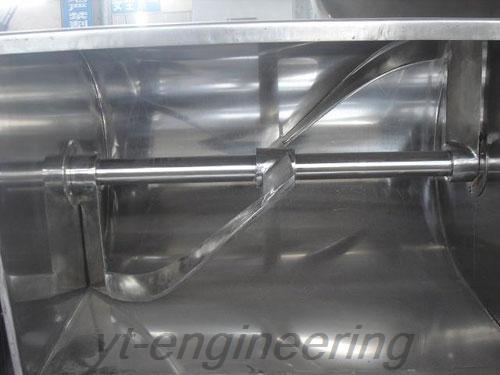

Trough food mixer machine is equipped with a set of stirring paddle of horizontal type, so it is suitable for mixing different proportion of dry or wet powdery material. When groove mixing machine operates, it is electrically controlled and the fixing time can be set. With mechanical rotation of mixer unit, s-type impeller rotates to make materials flip back and forth. When finished, it shuts down automatically.
Application
Trough food mixer machine is mainly used in pharmaceutical, food, chemical and electric industries for dry powder mixing. Groove mixing machine is especially suited to high uniformity materials.
Features
Trough food mixer machine is characteristic of compact structure, simple operation, elegant appearance, small floor area, easy cleaning and high efficient mixing.
Parameters of Trough Food Mixer Machine
| Model | Volume (m3) | Feeding Amount (kg/batch) | Overall Dimensions X × Y × Z (mm) | Mixing Time (min) | Stirring Speed (r/min) | Power of Motor (kw) | Discharging Motor Power (kw) |
| 50 | 0.05 | 38 | 1300 × 1000 × 540 | 6-15 | 28 | 1.5 | 0.55 |
| 100 | 0.10 | 83 | 1400 × 1100 × 600 | 6-15 | 26 | 2.2 | 0.55 |
| 150 | 0.15 | 124 | 1360 × 1120 × 600 | 6-15 | 24 | 3 | 0.55 |
| 200 | 0.2 | 140 | 1460 × 1200 × 600 | 6-15 | 24 | 4 | 0.55 |
| 300 | 0.3 | 210 | 1820 × 1240 × 680 | 6-15 | 24 | 5.5 | 1.5 |
| 400 | 0.4 | 310 | 2000 × 1240 × 780 | 6-15 | 20 | 5.5-6 | 1.5 |
| 500 | 0.5 | 350 | 500 × 1240 × 780 | 6-15 | 18 | 7.5-6 | 2.2 |
| 750 | 0.75 | 560 | 2200 × 1240 × 780 | 6-15 | 16 | 7.5-6 | 2.2 |
| 1000 | 1.0 | 780 | 2300 × 1260 × 800 | 6-15 | 16 | 11-6 | 3 |
| 1500 | 1.5 | 1150 | 2500 × 1300 × 860 | 6-15 | 12 | 11-6 | 3 |
| 2000 | 2.0 | 1500 | 2600 × 1400 × 940 | 6-15 | 12 | 15-6 | 4 |
| 2500 | 2.5 | 2100 | 3000 × 1560 × 1160 | 8-20 | 12 | 18.5-6 | 5.5 |
| 3000 | 3.0 | 2250 | 3800 × 1780 × 1500 | 8-20 | 10 | 22-6 | 7.5 |
Lantoky possesses 10 professional engineering and technical personnel and over 100 sets of processing equipment. We implement strict quality control system to guarantee the performance our trough food mixer machine. The quality of groove mixing machine is repeatedly checked during each stage of production. Additionally, mixer machine as well as other machines must undergo a trial run in the workshop, and only those qualified products are allowed to leave the factory.
